2 or 4 Color High Speed Weaving/Textile Making Machine Air Jet Power Loom with Dobby Shedding

Product Description

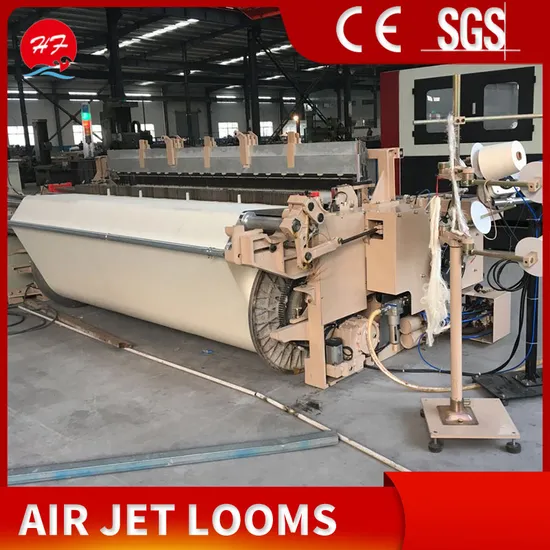

HF-190CM Air jet loom is a new type dobby air jet loom. It also has special designs on left-off system.
1: New type of weft insertion: Economizing air resource
2: New type of beating: Running as high speed and low oscillation
3: It-intelligence board: Easy to understand with color picture two-way communication

Item		Specification
Reed space	nominal	190 210 230 280
	Useful reeding width	Same as nominals width maximum reduction 60cm
Working range		Short yarn: 60s/1---5.8s/1
Welf section		2-colour mixing, 2 colour at-will, 4 colour
Drive		Pss can programme to start, push-button operation with both hands
	Motor power	2.7KW, 3. OKW, 3.7KW
WELFINSERTION		Main and sub-nozzles combined system
Shedding		Negative(positive) cam shedding: shaft number up to 10
Let-off		Electronic let-off with kickback function
	Flange dia	800cm
Take-up		ETM electronical take-up
		MTU mechanical take-up
	Max. take-up Dia	400cm
	Pick density	6.6- 80.5 picks/cm(16.7- 204.4 picks/inch)
	Length count	i-board display, take the function of fixe measure stop
	temple	Floor-mounted
Beating		Crank type beating, multiple sley sword beating 4 links(reed space up to 230cm) 6 links(down to 230cm) intermediate rocking supporter
Measuring /storing		FDP Free Drum Pooling
Filling supply stand		Floor-mounted for 4 packages(2 colours), Floor-mounted for 8 packages(4 colours),
Selvedge		Planetary gear motion
Waste filling removal		Catch cord type(gear type)
Cutter		Mechanical cutter
lubrication		Oil bath system for main drive parts, centralized lubrication(manual grease)
Auto-stop motion	Catch yarn	Reflective weft feeler(single feeler)
	others	Stop motion for selvage and catch cord yarn
	Stop cause indication	Message on I-bord, 4 colour lamp for indicating cause

Qingdao Haifu Machinery Manufacture Co., Ltd. is specializing in manufacturing and supplying water-jet loom.In the past 15 years, Haifu machinery has supplied world wide approximately 89000 sets of water jet loom machine, and it was among the first facotry in China making water jet loom, the company now has two facotries, one in Qingdao, the other one in Siyang, jiangsu province, haifu machinery is making sure all the machine given to the customer are at the same quaity, same best quality, we are not only focus on the price, but we are also focus on our brand name, we believe that with our quality always insured, customer will sees it and come back to us with more customers.Our machine now is running in Uzibekistan, Mexico, India, Turkmenistan, Pakistan. Every one of our customer was atractted by the way we make machines and decided to buy, and of course, satisfied with our machine and try to buy more.
