High Quality with International Standard Paper Roll Manufacturing Machine Toilet Tissue Roll Making Machine

Product Description

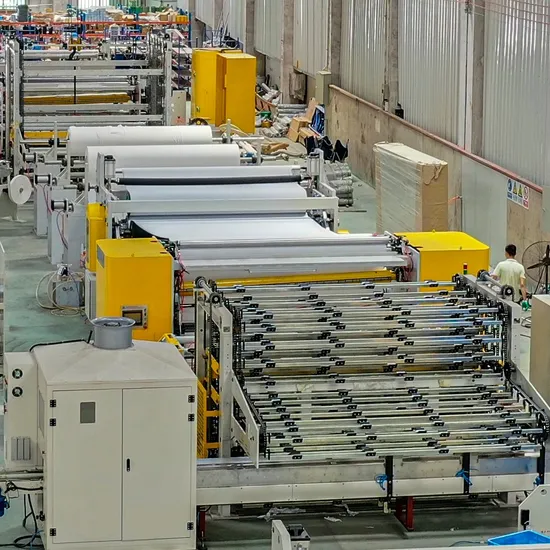

Toilet Roll Paper Machine Production Line Product Description This toilet roll paper making machine is full automatic, no need to stop to winding or changing paper. It contains Backstand part , Winding machine,Perforate part,Edge embossing part, Glue sealer,Accumulator,Embossing and lamination device, Paper core machine and holder,Four-line
Log saw cutter. It uses Common DC bus + motion control system.
Machine design parameters

No.	Item	Parameter
1	Equipment name	X4C-2900 Rewinding production line with core
1.1	Design speed	450m/min
1.2	Working speed	300-400m/min (,According to the jumbo roll gram weight, quality)
1.3	Winding theory	Paper core tube glue winding
1.4	Max. width of jumbo roll	2860mm
1.5	Backstand jumbo roll diameter	≤¢2000mm
1.6	Max. diameter of winding	¢150mm
1.7	Min. diameter of winding	¢90mm
1.8	Adapt to jumbo roll	14-30g/m^2

Winding machine

No.	Item	Technical parameter
1	Roller surface width	2900mm
1.1	Roll changing method	Continuous operation, no need to stop winding or changing paper
1.2	Paper break way	Paper break inside the machine
2	Diameter of finished product	¢90-150mm Core roll diameter range ¢ 90-150mm
2.1	Finished paper roll density adjustment	Data control via touch screen
2.2	Rewinding diameter adjustment	Servo motor control
2.3	Rewinding length adjustment	Controlled by touch screen data, the accuracy of section number is ± 1 section
2.4	Finished paper core tube outer diameter	35mm--50mm,(specifications are specified by the customer)
2.5	Drive	Independent motor
3	Embossing function	Installed on the winding main machine
3.1	Embossing way	Integral air bag compression method
3.2	Embossing wheel	Surface laser engraved pattern
3.3	Embossing wheel quantity	Determined by the size of the pattern
3.4	Drive	Independent motor
4	Spiral knife shaft structure	6Six-piece perforator surface knife
4.1	Perforated line ratio	4:1 and 8:1
4.2	Perforation pitch error	±1mm
4.3	Pitch	95-250mm() 95-250mm (touch screen adjustment)
4.4	Paper wrapping automatic induction protection system	With
4.5	Drive	Independent motor

Whole machine configurations

No.	Name	QTY	Unit	Remark
1	Backstand part	3	group	22m diameter jumbo roll
2	Rewinding main machine part	1	set
3	Perforate part	1	set
4	Edge embossing part	1	set	,No embossing wheel, have embossed bottom roller
5	F25Glue sealer	1	set
6	A206 Accumulator	1	set
7	FH495nested to nested lamination unit	2	set	Steel roller diameter 495mm
8	Common DC bus + motion control system	1	set	Siemens
9	LS160-4LFour-line log saw machine	1	set
10	C60paper core machine	1	set
11	Paper core holder	1	set

Example of capacity calculation method (Have core)
Jumbo roll gram weight 16gsm, 2 layers, width 2800mm, efficiency factor 75%, production time 10h, production speed 350m / min
350 (m / min) X2.80 (m) X0.016X2 X20 (hour) X60 (minute) X0.75 (efficiency) = 28224kg = 28.2tons
(Note: The above capacity calculations are for reference only)
Equipment performance inspection and acceptance:

No.	Item	Inspection and acceptance requirements
1	Main machine speed	350m/min(Depending on the quality of the jumbo roll)
2	Sealing speed	16-22 strips/min. / (Depending on the roll paper diameter)
3	Log saw speed	80-120 cut/min./(Depending on the specific product)
4	Finished diameter tolerance	+/-2mm
5	Perforation pitch tolerance	+/- 1mm
6	Ending length tolerance	+/-3mm
7	Cutting length tolerance	+/-2mm
8	The perpendicularity of the section and the axis	+/- 1mm
9	Paper core length tolerance	+/-2mm
10	The virtual tangent line is clear, uniform and beautiful. There are no holes caused by machine causes on the virtual tangent line, and no holes caused by machine cause on the non-virtual tangent line.
