Drilling Machine Drilling Machinery Z5163

Product Description

Drilling Machine Drilling Machinery Z5163

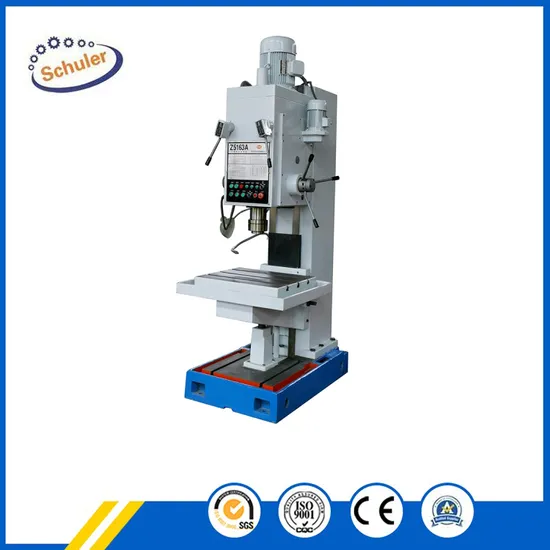

Product picture:
Vertical Drilling Machine Features:
Before the vertical drilling machine is processed, the position of the workpiece on the table must be adjusted so that the center line of the machined hole is aligned with the tool axis. During machining, the workpiece is fixed and the spindle rotates in the sleeve and is axially fed with the sleeve. The table and headstock can be adjusted along the column rails to accommodate workpieces of different heights. As a kind of drilling machine, vertical drilling machine is also a common metal cutting machine tool, which has the characteristics of wide application and high precision. Suitable for batch processing
Vertical Drilling Machine Technical Parameters:

Specifications	Z5163
Max drilling diameter	63mm
Max feed resistance	30000N
Max. spindle allowable torque	800N.m
Spindle taper	Morse NO.5
Distance from spindle axis to column guideway	375mm
Spindle travel	250mm
Spindle box travel	250mm
Spindle speed	40-570r/min 9 steps
The amount of feed(mm/rev)	0.1-0.78r/min 6 steps
Working table stroke	300mm
Working table surface size	650×550mm
Distance from spindle nose to table surface	800mm
Main motor power	5.5kw
Cooling pump flow	25L/min
Overall dimension	1452×965×2787mm
N/W	2500kg

Vertical Drilling Machine Details:
Vertical Drilling Machine In the Worishop:
Vertical Drilling Machine Package delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
Factory Information:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
