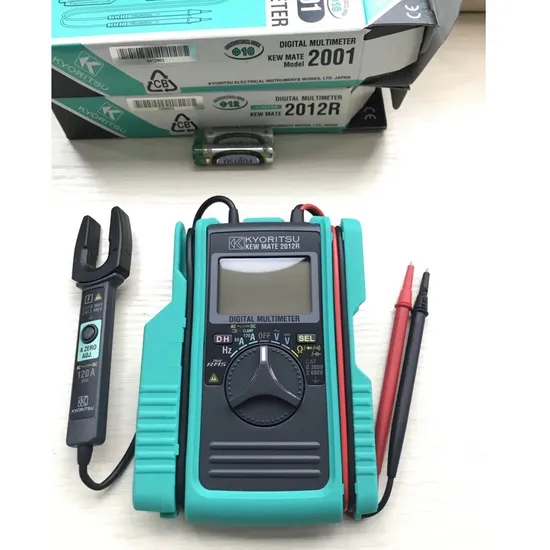

Kyoritsu Km2012ra Digital Multimeter
Basic Info.
Model NO.
Kyoritsu KM2012RA
Display Mode
Digital
Accuracy
0.5%~1%
Theory
Electronic Meter
Power Source
AC and DC
Connection Type
IEEE-488
Maximum Scale
19999
Range Conversion Type
AUTO RANGZ
Additional Measuring Item
Frequency
Display
LCD
Brand Name
Kyoritsu
Model
Km2012ra
AC/DC V Range
600.0mv/6.000/60.00/600.0V
AC/DC a Range
60.00/120.0A
Frequency (AC/DC a) Range
100/1000Hz/10/100/300.0kHz
Power Source,
2 X 1.5V R03 Battery
Dimensions
128 X 92 X 27 mm
Weight
230g
Transport Package
UPS/DHL/FedEx
Specification
45*36*33cm
Trademark
Kyoritsu
Origin
Japan
HS Code
9030311000
Production Capacity
50, 000 Pieces/Year
Product Description
This digital multimeter is equipped to withstand voltages of up to 3540V AC for 5 seconds.Kyoritsu KM2012RA Digital MultimeterFeatures:Continuous measuring timeApplicable standards IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2; IEC 61010-031 IEC 61010-2-032 IEC 61326Continuity buzzerWhat's included with the Kyoritsu KM2012RADigital Multimeter2 x 1.5V R03 BatteryInstruction ManualProduct Parameters
| AC/DC V | |
| Range | AC: 6.000/60.00/600.0V DC: 600.0mV/6.000/60.00/600.0V |
| Accuracy | AC: 1.5%rdg±5dgt at 45 to 400Hz DC: 1.0%rdg±3dgt |
| AC/DC A | |
| Range | AC: 60.00/120.0A DC: 60.00/120.0A |
| Accuracy | AC: 2.0%rdg±5dgt at 45 to 65Hz) DC: 2.0%rdg±8dgt at 60A; 2.0%rdg±5dgt at 120A |
| Frequency (AC/DC A) | |
| Range | AC: 100/400Hz DC: 100/1000Hz/10/100/300.0kHz |
| Accuracy | AC: 0.2%rdg±2dgt at 100Hz; 0.1%rdg±1dgt at 400Hz DC: 0.2%rdg±2dgt at 100Hz; 0.1%rdg±1dgt at 1000Hz/10/100/300.0kHz |
| Input Sensitivity | |
| Current | More than 6A |
| Voltage | -10kHz: More than 6V 10k to 300kHz: More than 20V |
| General Specifications | |
| Continuity Bbuzzer | Buzzer sounds below 3525 |
| Diode Test | 2V3.0% rdg±5dgt |
| Open-Loop Voltage | approx. 2.7V |
| Capacitance | 400.0nF / 4.000 / 40.00F Accuracy: 2.5% rdg±10dgt |
| Conductor Size | 12mm max. |
| Withstand Voltage | 3540V AC for 5 seconds |
| Applicable Standards | IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2 IEC 61010-031 IEC 61010-2-032 IEC 61326 |
| Continuous Measuring Time | DCV: approx. 150hours ACA: approx. 25hours (Auto power save: approx. 15 minutes) |
| Power Source | 2 x 1.5V R03 Battery |
| Dimensions | 128 x 92 x 27 mm |
| Weight | Approx. 220 g (Including Batteries) |
