Factory Price IP66 360 Degree Adjustable Ultra-High Intensity Light Icao Standard Airport Light LED Heliport-Helideck Elevated Light

Product Description

Product Description

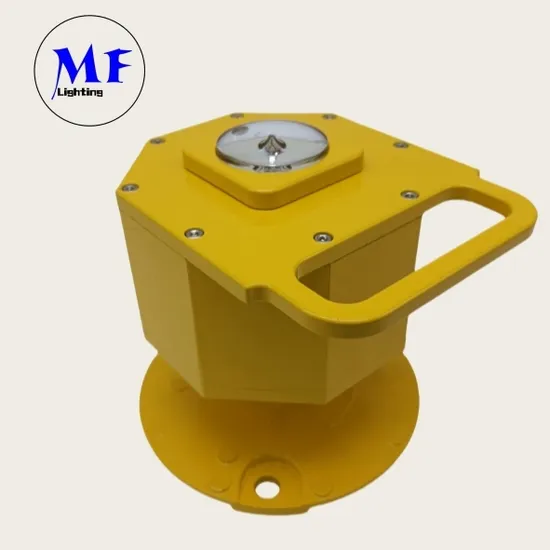

Factory Price IP66 360 Degree Adjustable Ultra-High Intensity Light ICAO Standard Airport Light LED Heliport-Helideck Elevated Light
Product Features
The MF-HP-E Serial Heliport Elevated lights should not surpass a height of 25 cm for both surface-level and elevated heliports, and should not exceed 15 cm in height for helidecks. A fragile coupling is incorporated into the base connection of the heliport lights, ensuring that if an aircraft accidentally hits the light, the base will break instantly to prevent further damage. These lights can be utilized as FATO (Final Approach and Take-Off) lights, TLOF (Touchdown and Lift-Off) lights, and Taxiway lights.
Products Parameters

SPECIFICATIONS	MF-HP-E Serial LED Heliport-Helideck Elevated Light
Light Characteristics
LightSource	Ultra high intensity LED
Available Colors	Green,Yellow,White,Red,Blue,IR
Intensity(cd)	ICAO standard
Horizontal Output(degrees)	360
Vertical Divergence(degrees)	ICAO standard
Flash Characteristics	Steady burning
Operation Mode	24hours operation
LED Life Experience(hours)	>100,000
Electrical Characteristics
Operaing Voltage	DC48V andAC(110-240VAC),DC12V
Power(W)	5
Circuit Protection	Integrated
Physical Characteristics
Body Material	UV protected Polycarbonate
Base Material	Powder-coated Die-casting aluminum
Mounting	140×140×012(Installed on heliport) 112×112×012(Installed on helideck)
Dimension(mm)	190×165×166(Installed on heliport) 173×133×102(Installed on helideck)
Weight(kg)	1.9 or 1.5
Product Life Expectancy	≥10 years
Environmental Factors
Ambient Temperature(C)	-55~70
Humidity	10~90%
Wind Speed	80m/s
Waterproof	IP66
Compliance
ICAO	ICAOAnnex 14 Volume ll Heliports 5.3
Options Available
Infrared LED compatible for NVG(Night VisionGoggles) VHF Pilot to GroundRemote Control Light intensity adjustable

Model Confirmation
Photometric
ConfigurationElectrical1. High-intensity CREE LED as light source saving powerconsumption and maintenance, 95% less power than equivalentincandescent light
2. Power supply available in AC(110-240VAC) and DC48V, DC12Vand other voltage is optional
3. LED power supply board includes short circuit and open circuitprotectionPhysical1. Unique designed Glass lens for converging light
2. Powder coated bright yellow color base make better visibility
3. Base material is die casting aluminum which has strong corrosionresistance, Shock and Vibrations protectionOptional1. Infrared LED for pilot using NVG(Night Vision Goggles)
2. Controller for power supplying and turn ON/OFF light
3. VHF pilot to ground remote control
4. Light intensity adjustable Product Dimensions
Product Applications
1. Helipad/Heliport TLOF Areas: Ideal for illuminating touchdown and lift-off zones, ensuring clear visibility for aircraft operations.
2. Heliport FATO Areas: Specifically designed to meet the lighting needs of final approach and take-off areas, enhancing safety and efficiency.
3. Helipad Runway: Clearly indicates the direction and location of the helipad runway, guiding aircraft movements.
4. Helipad Taxiway: Provides essential lighting and guidance for safe taxiing operations on the helipad.
5. Aiming Point Light: Serves as a luminous target point for approaching and departing aircraft, facilitating precise landings and take-offs.
6. Helipad/Heliport Lighting on Building Roofs: Offers necessary lighting for helipad operations conducted on rooftops of buildings, ensuring safe and efficient aircraft movements.
7. Helipad Taxiway Light (TA(L)) Areas: Features blue lighting to enhance navigation and safety on the taxiway, making it easier for pilots to distinguish taxiway paths. Packageing & Shipping
