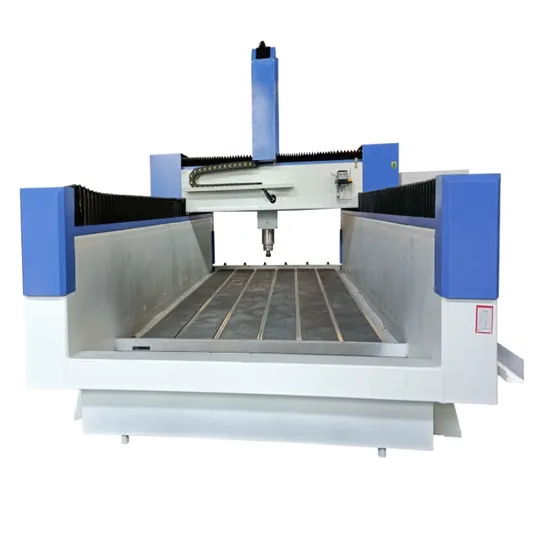

Stone Engraving Machine CNC Router Gd-1325/Marble Cutting/Figure Stone/Granite Cutting/Aluminum Cutting

Product Description

Product Description

Machine Features:
1, The whole machine adopts robust structure, powerful spindle motor, precise and efficient control system, coming with professional software. It is easy to install and operate.
2, Gantry movement, casting table is more durable. It will not bend after long time use. The position precision is much better.
3, Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.
4, The square sliding blocks are of good dust proof effect. Automatic oil feeding and lubricating system makes the regular maintenance very easy.
5, Superior high power water cooling spindle could keep working at low noise level, safeguarding stability for longtime operation.
6, Adopt Hiwin square guide rail, smooth operation and high precision, long life.
7, The sign making carving fine without serrated, the bottom surface smooth and the outline clear.
8, Adopt to imported high precision helical rack drive, to ensure the machine runs stably with high accuracy.
9, Good structural design of the whole machine, ensures long service life.

Product Parameters

Mode		2050 four head independent heavy-duty stone carving machine	1325 heavy-duty stone carving machine	1325 economical stone carving machine
Working size		2000*2500*300mm	1300*2500*300mm	1300*2500*300mm
Frame		Welded structure
Table surface		T-slot Table
X Y Structure		Rack and Pinion Drive,Hiwin Rail Linear Bearings
Z Structure		Ball Screw
Spindle power		3.5/4.5/5.5kw
Drive motor		Stepper/Servo
Inverter		Fuling or Sunfar
Control system		Mach3 System (Optional:DSP)
Working Voltage		380V/3PH/50HZ
Command Code		G code
Software Compatibly		Artcam/Artengraver/Type3/V9/JD paint
Packing Size		Wooden case

Detailed Photos
Water-cooled spindle special for stone
Used a high-power 5.5 kw main shaft for stone, with a maximum speed of 24,000 rpm.The four bearing rotors work at the same time,with large torque, strong power, dust proof and waterproof, and long service life.Hard and soft stone and other materials can be handled in one machine.

Thickened heavy bed
The welding of thick-walled square steel is strengthened, the bottom beam is laid flat and reinforced, and the lathe bed isdesigned in U-shaped mechanics.The whole lathe bed gantry has strong stability. good rigidity and high strength,the chassis is stable, and the bearing capacity can reach 2 tons.
Control cabinet
There are stepper drivers, power supply, inverter, power switch and Electrical parts etc inside of control cabinet
Square rail rack
The imported high-precision grinding helical gear is matched with the imported linear square rail to improve the accuracy andensure that the long-time work is not affected.
Aluminum profile + PVC table
Large aluminum table, strong load-bearing, stable and durable, PVC table anti-skid protection aluminum table
Machine control handleDSP A11 controller, it is more easy to use and operate machine to work than computer control systemMach3 and NC-Studio control system is optional
1. It can effectively remove floating oil, particles, and mold from the cutting fluid, ensuring the cleanliness and stability of the cutting fluid;
2. The body is compact and flexible, with a small footprint, making it easy to move and operate;
3. Safe and environmentally friendly, without the need for professional training, anyone can operate it;
4. Conservation of environmental protection: It can save the cost of purchasing cutting fluid and the cost of pollution discharge;
Application
Packaging & Shipping
Company Profile
Samet Intelligent Manufacturing Co., Ltd.
SAMET has been deeply engaged in the manufacturing of laser intelligent equipment for 11 years. It is headquartered inJINAN, China .It is a national high-tech enterprise focusing on laser application solutions such as laser cutting, tube cutting, precision cutting, laser welding, laser marking, CNC bending, and automation equipment.
SAMET has established branches and service outlets in 30% of the countries and regions around the world to promote the process of global intelligence and has more than 200 patents and certificates. SAMET adheres to the quality route and forms 139 production and inspection procedures higher than the industry standard. With the mission of "Laser technology makes a better world", its high-quality products and after-sales service have won high praise from customers.


After Sales Service
Pre-Sales Service
1.We have many exhibitions very year, hundreds of clients was coming to our booth for further communication. 2.24-hours online Inquiry and consulting support.
3.Support sample testing .
4.We welcome you to visit our factory.
After-Sales Service 1.Training how to install the machine, training how to use the machine online. 2.Engineers available to clients' factory for training if necessary.
3.Guarantee for one year
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining 6.Free technician training for customers FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don't know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.
Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: If we need SAMET technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's
business travelling ticket / room and board/ 100 USD per day.

Q:Why the machine price not include fiber source and tube parts ?
A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .
