Mini Power Tiller Mini Rotary Tiller Gasoline Power Tiller Diesel Power Tiller Cultivator Tiller Garden Tiller Farm Tiller Tractor Tiller

Product Description

7-22HP hand tractor power tiller tractor garden tractor diesel cultivator motocultor disel motoblock two wheel walking tractors with kinds accessories low price(8-22HP )
Mini Power Tiller Mini Rotary Tiller Gasoline Power Tiller Diesel Power Tiller Cultivator Tiller Garden Tiller Farm Tiller Tractor Tiller
Product Description
QINGDAO HENRY INDUSTRY CO.,LTD.

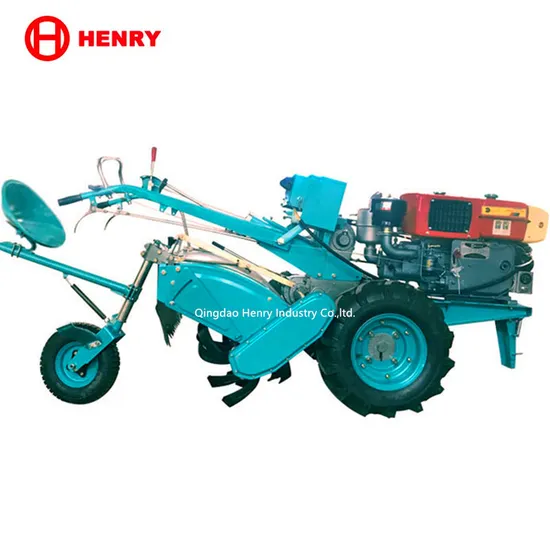

WALKING TRACTOR POWER TILLER MAIN MODEL
1. HR101-1, HR151-1,HR121/HR151/181/DF121/DF151/DF181/DF20/DF22 Main model
2. It has a new disign overall housing, and upgrade gear box body,
3. And the attached 7-22 HP direct injection diesel engine make it much more powerful.
4. Electrical starting is optional, make it better handling performance
5. 90% common gears and spare parts with walkig tractor , Simplifies the maintenance.
6. Different product colors is optional, to adapt to differen

It can be used for rototilling,ploughing, harrow-ing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suit-able farm implementa or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.

Item	Data		Item	Data
model	HR101-1		STANDARD TRACTION(N)	1600N
ENGINE	R180/190/192/195/196		Overall dimensions(mm)	2130×940×1090
12hours rating	8hp/10hp/11hp/12hp/13hp		weight(Kg)	258(with rotary 333kgs)
Rated speed	2300r/min		Tire sizes	6.00-12

Model			DF121	DF151/181/20/221
Overall dimensions (lxwxh)mm			2680x960x1250	2680x960x1250
Wheel track (mm)			800 740 640,580	800 740 640 500
Ground clearance (mm)			180	180
Tyres			6.00-12	6.00-12
Construction weight (kgs)			375	505
Speed (km/h)		Forward	1.54,2.75,4.51 5.83,10.34,16.83	1.54,2.75,4.51 5.83,10.34,16.83
		Reverse	1.20,4.18	1.20,4.18
Rotary Tiller speed (rpm)		High	275	275
		Low	219	219
Diesel engine	Model		195/1100/1105	1100/1105/1110/1115
	Type		Singlecylinder,horizontal,4 stroke Water cooling Diesel	Singlecylinder,horizontal,4 stroke Water cooling Diesel
	Rated power kw(hp)		12hp/15hp/18hp	15hp/18hp/20hp
	Rated speed (rpm)		2000	2300

Strong power from the diesel engine


main features
1)small garden tractor is small and light with low oil consumption, high efficiency and good stability.

2)Easy to operate and suitable for working in the narrow acrid land, paddy field, orchard and vegetable greenhouse.

3)According to different demands of the users, also can used for rotary planting, shallow & deep plowing, transplanting in the paddy field, loosening the soil, atomization, watering & dewatering, sowing and exploring more lands when corresponding equipments or tool are assembled
Available accessories

Packaging & Shipping

Packaging Detail:

A wooden box or as your requires

shipping:within 20 days
Company Information
product range
we have five ranges of related product,including tider,water pump,generator,power sprayer and engines,
you never worry to gather different model for same container,we can provide satisfying product instead.
The product warmly welcomed in the abroad market for more than 60 counties, and the product of walking tractor is around 300000sets per year.The largest market Include :EU,North America,South America.

Ourfactory
Established in 2005,is a professional manufacturer of agricultural machinery in china. About 1000 employees

Based on the strength of our production the special orders we can meet you ,

why choice us
1)Professional supply with certification:CCC ISO CE DOP
2)Perfact quality program,100% test before delivery
3)One year guarantee
4)OEM cervice
5)Price is our big advantage, because we have a very strong production capacity

Shopping guide recommended
1)HR151-1(15-20hp,hand cranking or electric start)
2)HR81(7-12hp,hand start)
3)HR101-1(7-12hp, hand cranking or electric start
4)HR101-2(7-12hp, hand cranking or electric start )
5)HR111(7-15hp, hand cranking or electric start )
6)HR121(12-15hp, hand cranking or electric start )
7)DF12-22HP power tiller FAQ
Q1: Are you a manufacturer or Trader ?
A1: We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
Q2: What's your terms of packing?
A2: Generally, we pack our goods in Neutral Boxes and brown cartons.
Q3: How about delivery time?
A3: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order.
Q4: How about after-sales service?
A4: 24-hour online response, if there is any problem with the tractor, a solution will be given within 24 hours, video maintenance
teaching will be provided, and damaged parts will be sent free of charge
