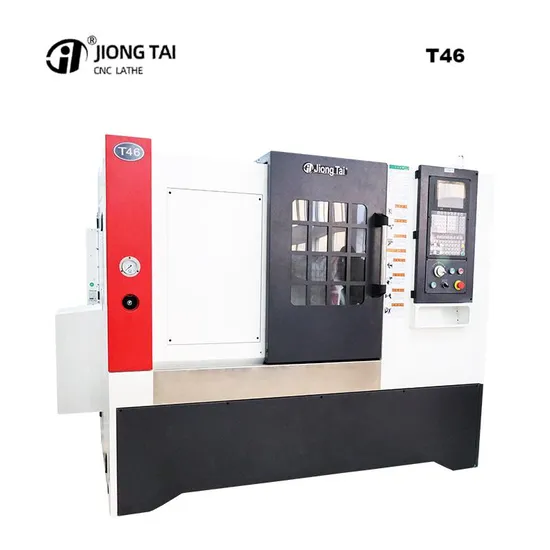

T46 Inclined Bed Turning Cutting Drilling Milling Metal CNC Lathe Machine
| US$10,000.00-12,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
T46
Application
Metal
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
CNC System
GSK
Optional CNC System
Fanuc, Mitsubishi M80, Siemens, Knd, Nanjing Kt
Standard Chuck
Maunal Chuck
Optional Chuck
Hydraulic Chuck
Transport Package
Seaworthy Packing
Specification
2800*1700*1750mm
Trademark
JT
Origin
China
HS Code
84589100
Production Capacity
1500sets/Year
Product Description
Product Parameters
The T46 slant-bed CNC lathe features a one-piece cast bed and slant guide rails for excellent rigidity and vibration absorption,ensuring high-precision cutting.It uses an AC servo motor with a V-belt direct drive spindle for low noise.The spindle has precision high-speed bearings and a box-type support for high-speed operation.Equipped with a multi-position or powered turret, it can machine complex parts like cylinders,threads,slots,and worms,offering linear and arc interpolation for mass production.An optional high-rigidity hydraulic servo turret provides greater reliability and repeatability.
| ITEM | UNIT | T46 | |
| General Rules | CNC system | GSK | |
| physical dimension | mm | 2800*1700*1750 | |
| Total weight of machine tool | kg | 3500 | |
| Technical specifications | Maximum rotation diameter on the bed | mm | φ500 |
| Maximum processing length (one clamp and one top) | mm | 480 | |
| Maximum workpiece length (two tops) | mm | 530 | |
| Maximum turning disc diameter | mm | φ400 | |
| Main rotation | Continuously variable speed | ||
| Main motor | kw | 11 | |
| Spindle hole diameter | mm | φ56 | |
| Maximum bar diameter | mm | φ46 | |
| Spindle speed | rpm | 50-3000 | |
| Feeding system | X-axis maximum travel | mm | 230 |
| Z axis maximum travel | mm | 500 | |
| X-axis servo motor torque | Nm | 130-7.5 | |
| Z-axis servo motor torque | Nm | 130-7.5 | |
| X-axis rapid feed | m/min | 20 | |
| Z-axis rapid feed | m/min | 20 | |
| X/Z axis positioning accuracy | mm | 0.005 | |
| X/Z axis repeat positioning accuracy | mm | 0.005 | |
| Workpiece processing accuracy | IT6 | ||
| Workpiece surface roughness | Ra1.6 | ||
| Tool holder device | Tool holder | 8 | |
| Tool bar section | mm | 25*25 | |
| Tool bar diameter | mm | φ32 | |
