China 9-Axis Automatic Lanhao Flexible Panel Bender

China 9-Axis Automatic Lanhao Flexible Panel Bender

US$40,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LHA-1000X
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Transport Package
Pallet
Specification
1000X
Origin
China

Product Description

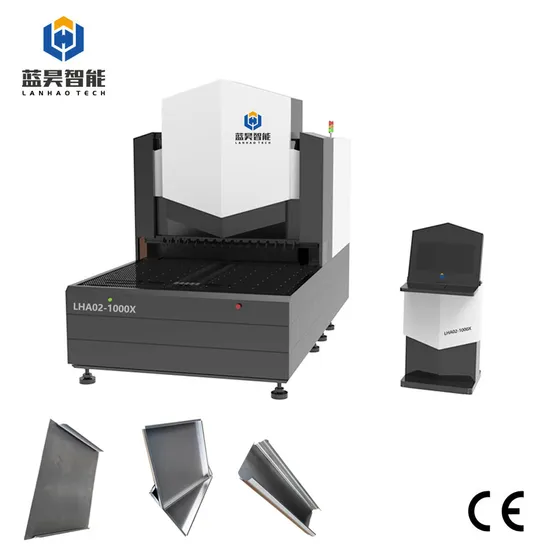

1 Equipment appearance 1.1 Equipment Outlook
2 Technical parametres
LHA-1000X-02 Technical parameters
Loading method Suction cup
Worktable structure Brush
Max. bending speed 0.2 second/time
Max.bending width 1000mm
Max.Bending size L1000mm W1000mm
Max. Bending height 170mm
Rated voltage 380V
Total power 25KW
Average power About 1.1KW
Noise decibels About 50 db
Machine size L285cm W150cm H280cm
Total weight 7 tons
User operating environment Win7 or above operating system
Max. Bending width UTS 520N/mm2 304 stainless steel 1.0mm
UTS 410N/mm2 cold plate 1.2mm
UTS 265N/mm2 aluminium plate 1.6mm
Min. Panel thickness 0.35mm
Four sides forming, min. Inner size 140mmx210mm
Double sides forming, min. Inner size 140mm
Axis Standard synchronized 9 axis
CNC system Lanhao Intelligent PC-BASE self-developed 9 axis+ synchronized full servo CNC control system.
Servo motor Joint R&D Joint R&D, perfectly matching Lanhao control system.
Bearing NACHI Japan NACHI, bearings diameter up to 16mm.
Screw rod Nanjing Technical Equipment 8020 heavy type grinding grade screw rod.
Line rail Nanjing Technical Equipment Nanjing Technical Equipment heavy-duty high-precision P3 class 55 roller type line rail.
Lathe bed Lanhao Intelligent Self-developed high-grade casting machine body, using high-grade QT500-7 and gray iron 250 casting.
Tools Lanhao Intelligent Lanhao patented tool.
Pneumatic accessories Japan SMC/Taiwan AirTAC Japanese/Taiwanese brands
Reducer Joint R&D High-precision helical tooth planetary reducer
Coupling TECMEN Sino-German joint venture brand
Oil system Taiwan Yuxiang Taiwan brand
Suction cup Airbest Oil-proof material.
