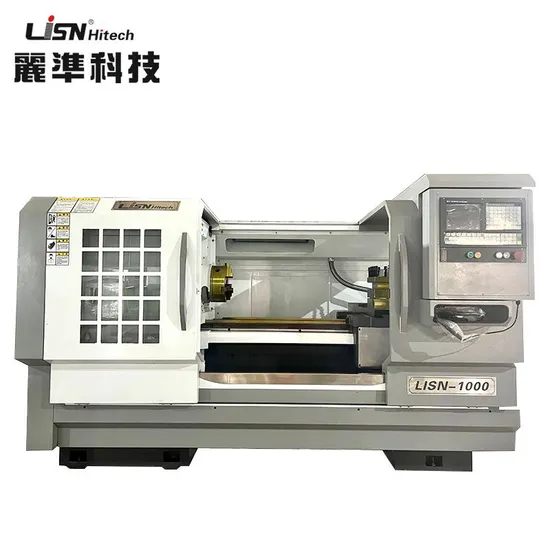

Horizontal Type CNC Lathe Machine Ck6150b

Product Description

Product Description
1.This machine is a two -coordinate (longitudinal Z,horizontal X) continuous control horizontal CNC lathe .lt has higt processing performance for the processing of shft and disc parts.lt is suitable for large batch size ,high processing precision and dimensional consistency.lt requires high processing of parts ,especially suitable for ,aerospace ,automtive ,mold,instrumentation and other mechanical processing industrise,and efficient,high -volume ,high -precision machining of parts.lt is a high effciency,high precision,high quality,high efficiency,low cost machine tool.
2.The machine tool adopts a mechanical, electrical and hydraulic integrated structure, and the overall layout is reasonable. Its high speed, high precision and high rigidity provide users with high efficiency and high reliability in use. The key purchased parts are purchased through bidding, and the products of well-known manufacturers are selected to ensure the precision and reliability of the machine tool. The whole machine adopts a closed full protective structure, which conforms to the principle of ergonomics and is easy to operate, which is conducive to safety and reduces the pollution to the production and operation environment.
Main Features
Excellent stability Excellent rigidity High performance Safety gate Maximum rotary diameter of bed body: φ500 Maximum swing diameter on board: φ260 Maximum length of workpiece: 1000mm, 1500mm and 2000mm Detailed Photos
Product Parameters

Specifications	MODELS→	CK6150	CK6150B	CK6150C	CK6163
Max. Turning Diameter of The Bed	mm	500			630
Max.Turning Diameter	mm	260			350
Max.Length Of Workpiece	mm	750; 1000; 1500; 2000			750; 1000; 1500; 2000
CNC CNC System	-	GSK(Optional: Mitsubishi/Fanuc/Siemens/KND/HNC)
Spindle Speed And Range	rpm	(Low speed) 16-160rpm (Middle speed) 120-600 (High speed) 400-2000		(Low speed) 12-100 (Middle speed) 70-300 (High speed) 260-1200	(Low speed) 14-70-175 (Middle speed) 40-200-500 (High speed) 100-520-1000
Taper Bore Of Spindle	-	(Morse No.6) MT6	(Metric ):90mm1:20	(Metric): 120mm 1:20	(Metric):120mm1:20
Spindle Nose	type	C-6	D-8	D-11	C-11 ( D-11 )
Diameter Of Spindle Bore	mm	52	82	105	100
X/Z Rapid Feed Speed	m/min	4/8			4/8
Tool Post Capacity	-	4fB (6 optional)			4ffi (6 optional)
Main Motor Power	KW	7. 5			11
X Axis Servo Motor Torque	Nm	(AC servo motor) 6Nm			-
Z Axis servo motor torque	Nm	(AC servo motor) 7.5Nm (2000mm: 15Nm)			(AC servo motor) 10NM (1500mm:15Nm)
Repeatability Of X-Axis	mm	0. 012/0.001			-
Repeatability Of Z-Axis	mm	0. 012/0.001			-
Tape Hole Of Sleeve		NO: MT5			NO: MT5
Machine Overall Dimensions (About)	mm	2375x1414x1815 2625x1414x1815 3125x1414x1815 3625x1414x1815		2398 x 1420x1820 2648 x 1420x1820 3148x1420x1820 3648x1420x1820	-
Net Weight(About) Kg	KG	750mm 2300; 1000mm 2400; 1500mm 2600;2000mm 3200			750mm =4300; 1000mm =4450; 1500mm= 4800; 2000mm =5300

Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
