Fiber Yarn HTHP Jet Hank yarn Dyeing Machine

Product Description

Product Description
Product Description

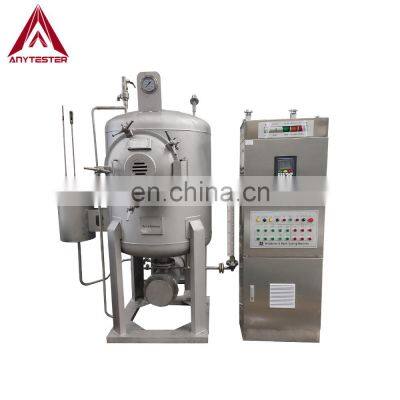

AT292 Series HTHP Jet Hank yarn Dyeing Machine is suitable for bleaching, refining, dyeing, washing and post-treatment of hank yarn of polyester fiber, rust thread, silk and nylon yarns.
Specification

Model	AT292-2	AT292-5	AT292-10
Capacity	2kg	5kg	10kg
Designed Pressure	0.44Mpa
Max work Pressure	0.40Mpa
Designed Temperature	140ºC
Max work Temperature	135ºC
Heating rate	5℃/min
Cooling rate	4℃/min
Liquor Ratio	1:6~1:20
Power	1.1KW	1.5 KW	5KW
Dimension（mm）	1500×1210×1700	1700×1350×1900	2000×2400×1700

Details
Air pressurizing typeBath ratio is adjusted according to the variety of yarn and dyeing process, or it can be selected by adjusting dyeing bath volume according to case may be. Greatly saving the energy source, water, steam. Full filling typeThis machine has chemical material system(mixer and chemical material barrel), pressurizing and material loading system(auxiliary pump), internal and external dyeing liquor circulation system(cooler). During dyeing process the fabric processing requirements can be met under room temperature and high pressure and high temperature and high pressure featuring wide application and good dyeing chrome and luminosity.
Dyeing machine automationThis machine is of automation to various extent to meet various requirement, with the automation. Range from simple control of temperature rising and lowering according to operator's clew to automatic control over loading vessel and dosage system operation with exception of yam inlet. Outlet and sampling dyeing vat.
Safety and convenienceThis machine uses self-sealing of pot rim. Combination safety device of pneumatic pot rim locking and pneumatic pot cover opening and closing device, being of easy and reliable operation.
Details & Features
★ This machine adopts a special design of low energy consumption, low head, large flow mixed-flow pump. High temperature does not affect its characteristics at all.
★ New weir jet tube, dyeing tube and yarn-turning shifting tube are integrated. There is absolutely no winding or knotting of the dyed yarn. After dyeing, the drum is easily inverted and the loss rate is low.
★ Special designed water regulator can adjust the amount of water arbitrarily according to the amount of dyed yarn and yarn count and variety. The machine has been optimized in structure, small bath ratio, saving raw materials and low cost.
★ The fuselage material is made of high quality and corrosion resistant stainless steel.
★ The jet tube is made of SUS-316L stainless steel plate with high corrosion resistance.
★ High performance stainless steel mixed flow pump.
★ Equipped with auxiliary cylinder, it has the functions of stirring heating, feeding water, reflux and feeding.
★ Reliable PLC program controller.
★ Automatic water level indicator.
★ Design of Safe Operating System
★ Tools for easy yarn loading, yarn discharge and nozzle cleaning
★ This machine are equipped with automatic water supplying system to save labor.
