CE Certification 1-2t/H Biomass Pellet Making Machine Rice Husk Straw Sawdust Wood Pellet Mill Machine Price for Sale

Product Description

CE Certification 1-2T/H Biomass Pellet Making Machine Rice Husk Straw Sawdust Wood Pellet Mill Machine Price for Sale
Product Description
1. Introductions of Automatic Wood Pellet Line/Plant:The Production Line mainly includes splitting, chipping, crushing, drying, pelletizing, cooling and packing.2. Working Principles:1). Material come from belt conveyor and then into the storage, screw conveyor feed material automaticllly to the pellet forming chamber.2). In the forming chamber, two gear and mold help to form and press pellet, Gear rotate to press pellet come out surround.3). Automatic cutting machine arround the mold, which can cut pellet automaticly, it can also adjust the length of pellet.
Product Parameters
LH ring die wood pellet machine:

Model	Main Power (KW)	Capacity (t/h)	Feeding Power (KW)	Conditioner Power (KW)	Die Diameter (mm)	Pellet size (mm)
LH- 320	37	0.2-0.3	1.5	2.2	320	6,8,10,12
LH- 350	55	0.5-0.7	1.5	3	350
LH- 420	90	0.8-1.2	2.2	5.5	420
LH- 480	90	1.3-1.8			480
LH- 508	132	1.7-2.2			508
LH- 558	160	2-2.5			572
LH- 678	185	2.5-3.5	3	11	678
LH- 768	250	4-5.5	4	18.5	768

Photos of the LH System capacity wood pellet mill:
Working methods:The raw material is under dried condition, which is compressed, and formed into small eraser-sized bits, the final pellets is clean, pleasant and smooth, and its density is more than 1.0 G/M3.Raw material:This wood solid fuel pellet mill machine is researched and developed for producing biomass pellet specially.
The raw material could be sawdust, wood, straw, rice husk, bagasse, cotton stalk, peanut shell, bamboo, empty fruit branch, pulverized coal, waste paper, cottonseed skins, weeds, crop stalks and other plant wastes, especially low-bonding and unformed materials. Requirements of the raw materials of wood pellet machine:Size: 3-5mm
Moisture: 10-15%
Advantages: 1. Siemens motor, Imported NSK bearing;
2. Equiped with Automatic oil and cooling adding system;
3. National patent;
4. Competitive price Final pellet diameter:6mm, 8mm,10mm,12mm.Length : 20-50mm, it can be changed and controlled by yourself;

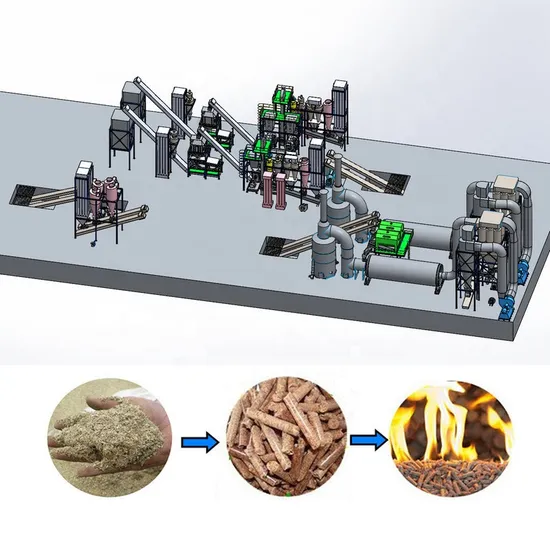

Wood Pellet Line
Different Capacity Wood Pellet Production Line
Packaging & Shipping
Company Profile
CE
FAQ
Before quote, pls kindly inform us follows information, so that we can suggest a suitable model for you accordingly.
1.What is your raw material for making wood pellet?
2.What is the size of your raw material?especially the max feeding diameter (mm)
3. What is the moisture content of your raw material?(mm)
4. What is the capcity do you need(kg/h) ?
5. What is the final pellet size do you need (mm) ?
