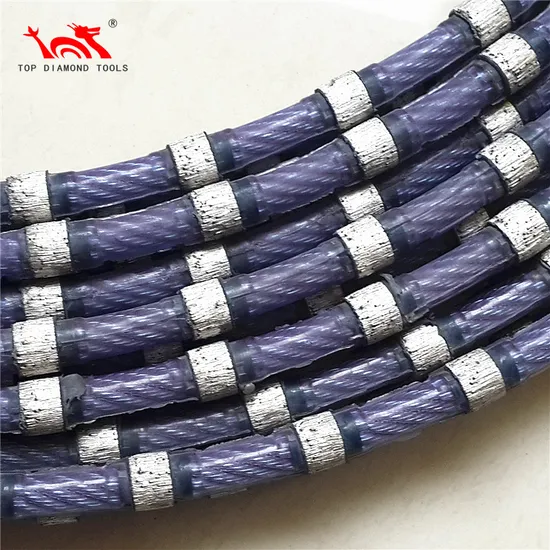

Diameter 8.8mm Diamond Wire Saw Rope for Granite Marble Stone Cutting and Profiling

Product Description

Product Description Why TOP:
TOP Diamond Tools Company is the top manufacturer of diamond tools with the advantages as follows:
1).Our brand is TOP which is Highly recognized in the industry;
2),Warranty for our products:take shipping cost and send replacement if any problem for our goods;
3),20 years' production experience;
4),Fast shipment: we have most of the standard products in stock,within 3 days normally;
5),Low MOQ requirements,1-2 pc is available normally;
6),ISO9001 and MPA Germany Safety Certificates.

Item No.	Diameter	Fixing	Beads/meter	Material	Sawing Speed (mm/min)	Life Time (m2/m)	Line Speed (m/s)
PG8.8	8.8mm	Plastic	37	Class 1-2	12-20	12-20	28-30
PG8.5	8.5mm	Plastic	37	Class 3-4	8-15	10-15	26-28
PG8.2	8.2mm	Plastic	37	Class 4-5	7-10	7-10	24-28

Note: Efficiency is measured by down-feed per min.

Attentions for the profiling diamond wire cutting on stationary machines:
1. Regular inspections of diamond wire self rotation and make adjustment in time.
2. Regular inspections of diamond wire abrasive to avoid cut-in-one-side problem happen. Once it happens, make the solution straight way.
3. Regular inspections the joint, as well as the beads of two sides, if they are abrasive badly, replaces them in time.
4. The cable tension of the stationary machines should be controlled within 250-300kg(φ 4-5mmcables).
5. Linear speed is changed according to the different hardness of stones.
Class 1-2 granite: 28-30m/s
Class 3-4 granite: 26-28m/s
Class 5 granite: 24-28m/s
Marble: 30-40m/s
Abrasive stone: 30-35m/s
6. For the new wire, when start to cut, its linear speed should be slower 2-3/s than the standard mentioned above, it is good for sharpen.
7. Water supply is around 15-25L/min.
