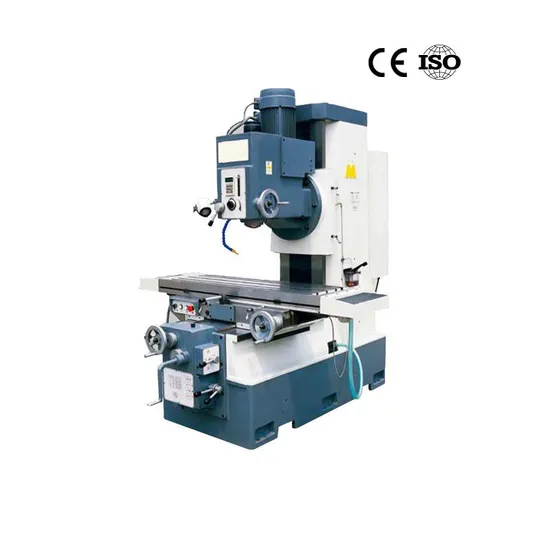

Bed-Type Milling Machine Xa7140 Processing Low Cost
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
XA7140
Type
Worktable Milling Machine
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Table Size
1400X400mm
Size (Width)
18mm
Centre Distance
100mm
Max. Load of Table
800kg
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84596990
Product Description
| Bed-type Milling Machine |
| Specifications | XA7140 |
| Table size | 1400x400mm |
| T slot | 3 |
| Size (Width) | 18mm |
| Centre distance | 100mm |
| Max. load of Table | 800kg |
| Longitudinal travel | 800/1000mm |
| Cross travel | 400/360mm |
| Vertical travel | 150-650mm |
| Spindle taper | ISO50 |
| Quill travel | 105mm |
| Spindle speed /step | 18-1800rpm |
| Spindle axis to column surface | 520mm |
| Spindle nose to table surface | 150-650mm |
| Longitudinal/cross feed | 18-627/9mm/min |
| Vertical | 18-627/9 |
| Longitudinal/cross rapid speed | 1670mm/min |
| Rapid Traverse vertical | 1670 |
| Main motor | 7.5kw |
| Feed motor | 0.75kw |
| Elevating motor for headstock | 0.75kw |
| Coolant motor | 0.04kw |
| Overall dimension | 229x177x212cm |
| N/W | 3860kg |
| Standard Accessories | Optional Accessories |
| Machine Work lamp | Digital readout system |
| Coolant system | Dividing head device |
| CE electrical cabinet | Rotary table |
| Vice |
