Yjv22 Yjv32 Yjv62 Yjv PE Underground Copper Power Rubber Control Industrial Armoured Low Medium Voltage LV Mv Aluminum Power Cable PVC XLPE Insulation

Product Description

Discover our AS/NZS SANS UNE HD IEC standard LV low voltage XLPE insulation underground electric power cable for reliable underground power transmission. Ideal for low and medium voltage applications.

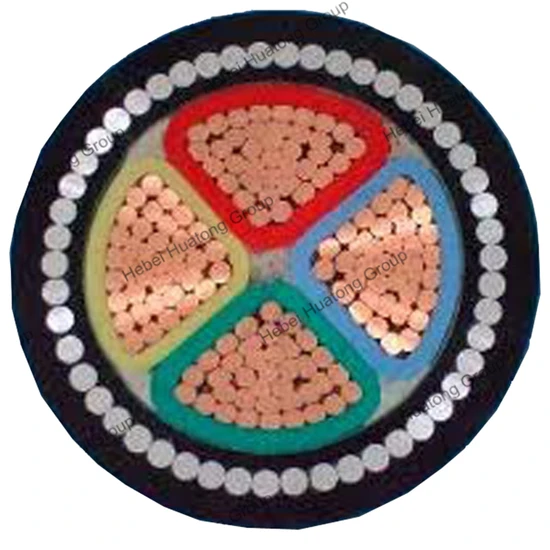

1 Information XLPE Insulated Power Cable Product Description: Hebei Huatong Wires & Cables Group Co., Ltd. offers XLPE insulated power cables with a variety of cores, constructions, and nominal section areas. The cables feature solid or stranded copper conductors, XLPE or PVC insulation, and galvanized steel wire or steel tape armor. They provide excellent electrical and mechanical properties, high resistance to chemical corrosion, heat, and environmental stress. With a long operating temperature of +90°C, these cables are convenient to use and can be laid without restrictions.
Features: High electric and mechanical strength Resistance to chemical corrosion and environmental stress Simple construction Long-term high operating temperature Flame-retardant options available Standard: Compliant with IEC60502, BS6346, VDE, AS/NZS, UL, or as per customer's request.
Rated Voltage (kV): 1st class: 0.6/1, 1.8/3, 3.6/6, 6/10, 8.7/15, 12/20, 18/30, 21/35
2nd class: 1/1, 3/3, 6/6, 8.7/10, 12/15, 18/20, - , 26/35
Application: Suitable for direct burial or installation on trays or ducts Recommended for laying in the ground with varying levels and external mechanical forces Specification: Contact Hebei Huatong Wires & Cables Group Co., Ltd. for detailed specifications.

Type	Designation	Application
YJV	Copper conductor ,xlpe insulated ,PVC sheathed power cable	For laying indoors, in tunnel or cable trench, unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct
YJLV	Aluminium conductor , xlpe insulated ,PVC sheathed power cable
YJY	Copper conductor, xlpe insulated, PE sheathed power cable
YJLY	Aluminium conductor , xlpeinsulated ,PE sheathed power cable
YJV22	Copper conductor ,xlpe insulated ,steel tape armoured ,PVC sheathed power cable	For laying indoors, in cable trench or direct in ground , able to bear external mechanical forces, but unable to bear pulling force
YJLV22	Aluminium conductor ,xlpe insulated ,steel tape armoured ,PVC sheathed power cable
YJV23	Copper conductor ,xlpe insualted ,steel tape armoured ,PE sheathed power cable
YJLV23	Alunminium conductor ,xlpe insulated ,steel tape armoured ,PE sheathed power cable
YJV32	Copper conductor, xlpe insulated, steel wire armoured,PVC insulated power cable	For laying indoors, in cable or direct in ground , able to bear external mechanical forces, but unable to bear large pulling forces
YJLV32	Aluminium conductor, xlpe insulated ,steel tape armoured ,PVC sheathed power cable
YJV33	Copper conductor, xlpe insulated steel wire armoured , PE sheathed power cable
YJLV33	Aluminium conductor ,xlpe insulated , streel wire armoured ,PE sheathed power cable
Note: The armoured single core cables is only used for D.C.system. As for A.C.system,non-magnetic armored material should be applied

Company Name: Hebei Huatong Wires & Cables Group Co., Ltd.
Established in 1993, Hebei Huatong Wires & Cables Group Co., Ltd. is a leading manufacturer of wires and cables. With over 220,000 square meters of production space, 420 sets of manufacturing equipment, and 250 sets of testing equipment, our annual production capacity is 5 billion Yuan. Employing over 1500 individuals, including more than 150 technicians, we provide high-quality products for various industries such as electric power, coal, metallurgy, and more.
Our product range includes rubber serious cables, submersible oil pump cables, shipboard cables, PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables, communication cables, and conductors. We are proud to be OEM partners for cable companies in the USA, Europe, and Australia, with 70% of our products being exported to developed countries. Hebei Huatong Wires & Cables Group Co., Ltd. holds certifications such as ISO, UL, TUV, KEMA, and CE, ensuring the quality and reliability of our products.
