Pasteurizer Machine for Milk Juice Tubular Type Pasteurizer

Product Description

Main Features Suite for different kinds of liquid food,such as Yogurt,Milk,Juice ,etc. Easy to operate and clean Fully automatic sterilization function. High Control temperature accuracy Good heat exchange effect Good energy saving
Specifications

Material handling capacity	1000L/H	Enter temperature	45~60ºC	power supply	380V 50HZ
Sterilization temperature	85~88ºC			Steam consumption	About 300KG/h
Material sterilization temperature	≤85~88ºC	Keeping time	15~30S	Material outlet temperature	2~15ºC
hot water temperature	87~91ºC	Circulating cooling water requirements	≥4000L/H	Circulating cooling water temperature	≤-2ºC

Device model	CN0347_1.5_BS	Total installed power	45KW
Material inlet and outlet diameter	¢25
Plate material	SUS316L	Outer tube	SUS304
Sterilization temperature	Fully automatic control, automatic recording	Media inlet diameter	¢25
control precision	Within ±0.5ºC	compressed air pressure	0.5Mpa or more
Cleaning status	self cleaning	Sterilizer equipment appearance dimensions	2200*1800*2500
equipment weight	2000KG

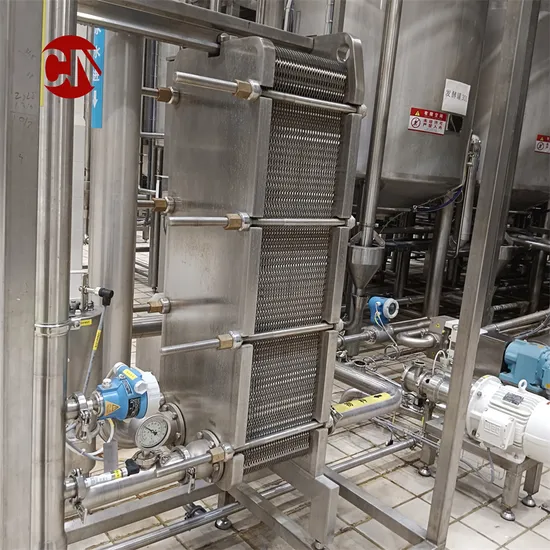

fully automatic plate sterilization unit
(1) Working conditions requirements:
01. Material processing capacity: 1000L/H, static viscosity <4000cp, solid content 12%~50%, some products contain pulp 2mm, can be homogenized, pulp fiber
02. Temperature combination: Technology: Ice cream milk.
03. Sterilization process parameters:
Feeding 45degree~60degree--homogenization temperature 70~80degree---sterilization temperature 85~88degree--exit temperature 2~15degree, heat preservation 15s~30s--discharge 40degree.
The entire process is fully automatically controlled.
04. Tower water entering temperature ≤35degree, flow rate ≥4000L/H; ice water entering temperature: ≤-2degree Cooling water consumption: ≥4000L/H
05. Compressed air working pressure: ≥0.6Mpa, after water and oil removal.
06.Steam pressure≥3bar
(2) Design requirements:
01. Sterilization temperature: freely set by touch screen panel and automatically controlled.
02.Outlet temperature: 2~15degree
03. Keeping temperature and time: 15s~30s
04. Hot water working temperature: 88~91degree
05. Equipped with a fully automatic alarm and fault handling system, which can effectively eliminate the output of substandard products.
06. Realize automatic control, touch screen human-machine interface, full Chinese/English display operating system, real-time display and alarm, real-time display and alarm of valves and pumps, human-machine interface to realize formula management, real-time recording of production and CIP process parameter operation events and error alarm.
07. Fully automatic conversion of pre-sterilization, production and CIP processes, fully automatic PLC control.
08. It has its own CIP cleaning system, which can automatically clean the CIP in situ at any time and does not rely on the startup of the CIP system in the workshop main line.
09. Maintenance is simple and convenient without any bulky tools. The manufacturing materials fully comply with GMP standards for food factories.
10. Indirect heating, automatic control of hot water system, precise flow and temperature control,
Details :
Processing Line Equipment
20Ton/Hour Milk, Yogurt Production Line Equipment
500Ll Milk or Yogurt production Line Equipment
UHT sterilization machine photos:
Related Products:
Application:
Company Introduction: Chun Nuo Intelligent Manufacturing (Shanghai) Technology Co., Ltd.
Established in 2014 in Jiading District, Shanghai. We have our own production base,which located in Yangzhou City, Jiangsu Province. Our company is mainly engaged in the food, beverage, beer, condiments, pharmaceutical and chemical industries, and is responsible for the design, production and manufacturing of complete line equipment for fluid food turnkey projects. The main equipment includes pasteurizer, UHT sterilizer, Mixing Tank System, CIP systems, stainless steel tanks, Aseptic tanks, aging tanks, cheese Jar and Cooling tank, various types of individual equipment.
We have a large number of professional and technical personnel and technical service teams with many years of installation experience at home and abroad. We have undertaken the overall installation of many large-scale projects. The company provides world-class professional engineering installation experience and management experience in a work spirit of excellence. , provide users with good after-sales service and wholeheartedly meet user requirements. Professionals are the foundation of good service. Our after-sales service personnel have practical experience and system training in equipment use and maintenance, and truly master professional knowledge and on-site processing skills. method.
