China best biochar Industrial furnace charcoal kiln

Product Description

Product Description

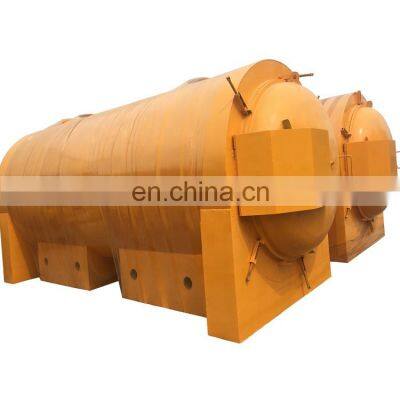

China best biochar Industrial furnace charcoal kiln
Product Description
China best biochar Industrial furnace charcoal kiln was developed by our factory latest modular air coking furnace, more Efficient than old type carbonized furnace, greatly shorten the production cycle, improve the efficiency of charcoal production, is an ideal equipment of large and medium scale charcoal production of charcoal. It uses a unique storage chamber structure, make full use of the flue gas produced by carbonization. In addition to their use of the stove, achieve energy conservation and environmental protection requirements.Energy-saving air coking furnace: simple and convenient, need not power and mobile production.It is an ideal equipment of family scale production.
It adopts the advanced carbonized technology heat flow,carbonized rate increased significantly,The carbonized rate is about 80%, up by 99%.And the operation is very convenient, good safety,high production efficiency,can save a lot of energy, good environmental protection performance.Shunt can also dry burning boiler flue gas and so on.Truly the charcoal,gas and oil range of equipment.Is currently the world's most advanced carbonization furnace.
Technology parameter of China best biochar Industrial furnace charcoal kiln

Model	DX-120	DX-170	DX-190
Volume	3CBM	10CBM	15CBM
Inner pot size	1.2*2.65m	1.7*4.8m	1.9*5.3m
Capacity	1tons charcoal/day	1.5tons/day	2-2.5tons/day
Carbonization time	6-8hours	8-10hours	8-10hours
Machine size	2.8*2.1*2.1m	5*2.1*2.1m	5.5*2.1*2.1m
Weight	1680kg	4800kg	7000kg
HS code	8417809090
It includes: 1*kiln car, rail, purify system, smoke pipe, temperature gauge

Main features of China best biochar Industrial furnace charcoal kiln1.Due to its design principle of rotary type,reduce its carbonization time
2.it can use different material as the fuel.
3.Saving energy, it can reuse the smoke produced during the process of carbonization.
4.Compare with the hoist type carbonization, its biggest advantage is that it doesn't need any hoist equipment.
Advantage of China best biochar Industrial furnace charcoal kiln
1.It adopts the advanced carbonized technology heat flow,carbonized rate increased significantly,
2.The carbonized rate is about 80%, up by 99%.And the operation is very convenient, good safety,
3.high production efficiency,can save a lot of energy, good environmental protection performance.
4.Shunt can also dry burning boiler flue gas and so on.Truly the charcoal,gas and oil range of equipment.
5.Is currently the world's most advanced carbonization furnace.
Specifications of China best biochar Industrial furnace charcoal kiln1.Raw material:wood branches,wood logs, bamboo, coconut shell, charcoal stick.wood waste etc.2.Can customized the model according to your requir3.Smokeless and energy-savingRaw material of China best biochar Industrial furnace charcoal kiln
China best biochar Industrial furnace charcoal kiln In the carbonization process ,can produce combustible gas,can recycle these gas.These gas delivery to the white tank through No.1 pipeline,then open the valve of the No.2 pipeline, these gas can reach to the bottom of the furnace through the No.2 pipeline.At the No.4 valve, you can be connected to a pipeline at the No.4 valve, so that can use the extra gas,these gas can cooking, burnning boiler etc.So can save some cost, it is enery-saving.This is shunt tank, at the Nbottom(NO.5) can collect the wood tar.
The flow chart of China best biochar Industrial furnace charcoal kiln
Final product of China best biochar Industrial furnace charcoal kiln
Detailed Images of China best biochar Industrial furnace charcoal kiln
China best biochar Industrial furnace charcoal kiln to improve the design of the charcoal carbonization furnace, in order to prevent gas leakage, the oven door with graphite packing seal, greatly enhancing the effect of carbonization
Packaging & Shipping
Packaging Details Pallet or Fumigation-free wooden boxes
Delivery Time Within 10 days after receipt front money
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Services
1.ProductPackage.
2. Sample order.
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Company Information
Gongyi Dongxing Machinery company is specialized in the import, export and wholesale biomass charcoal machinery production line,
like: wood crusher, sawdust dryer, briquette machine, and carbonization stove,etc. The final briquette or charcoal are best fuel for barbecue or boiler.
Our aim is to supply the market with top quality charcoal equipment, and provide best service and best price for our customer.
Thanks very much for client's trust!
FAQ
1.What is the carbonization rate?
This carbonization rate can reach to 99%.
2.Could you offer complete Top Quality hot airflow carbonization kiln with ISO?
Yes, we will allocate suitable production line according to your special requirement, such as Gasifier Equipment, Dust-Removal Device, Gascleaner, Auto-feeding Conveyor,Cooling and Discharging Conveyor,Manual automatic dual-use electric control cabinet, and related machines, etc.
3.Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
4.Where is your factory located? How to get there?
We are located in Gongyi city, Henan province, China.Our nearest airport is Zhengzhou International Airport, and the Airport Code is CGO.We will pick you up at airport.Welcome to visit our factory.
If you are interest in our machine contact me at any time
