Wood Log Rounding Debarking Machine with Waste Crusher Shredder for Veneer Papel

Product Description

Product Description

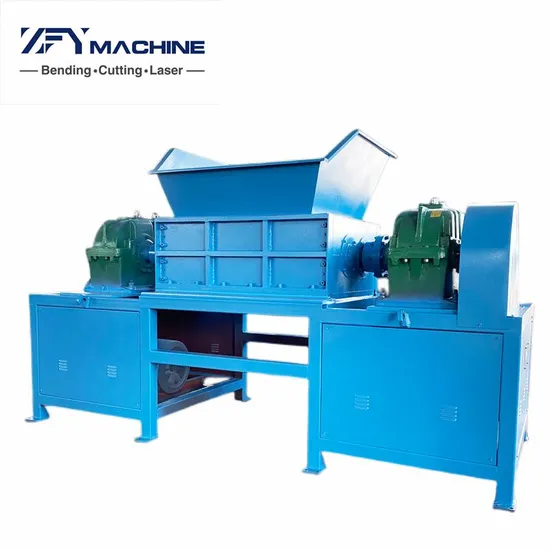

Industrial Shredders are used in a wide range of applications in the recycling and waste disposal industry in reducing size or volume in large batches by shearing, tearing, or crushing. It is divided into single-shaft shredders, double-shaft shredders, and four-shaft shredders. Double-shaft shredder meets most material disposal requirements thanks to its high shredding ratios, consistent work efficiency, and low failure rates.
Our industrial shredders have an extensive range of applications and can process municipal waste, bulky waste, industrial hazardous waste, waste tires, non-ferrous metals, electronic waste, plastics, cardboard, and all other solid wastes.
Combined with advanced intelligent control systems, we help customers to increase project automation and availability and reduce operating costs and system risks to achieve long-term development plans.
Please contact us if you have any customization requirements and recycling production line requirements!
Standard Configuration Our AdvantagesZFY's engineers have designed each knife profile and configuration to suit the application for maximum throughput and optimum shred size. Each knife is manufactured with the sharpness needed to pierce through thick material and slice up materials with effective ease. The shredder control panel, designed by certified ZFY technicians, features illuminated function buttons, a keyed power switch, fused lockable disconnect, an hour meter, and a programmable logic controller for shredder functions, including knife reversal on overload. This panel puts the entire shredding process right into your hands, allowing you to take full control to ensure that the system is working just how you want.The unique design of the machined hex shafts maximizes knife placement options and allows for easy knife removal and machine maintenance. Size for size, the hex shaft is several times stronger than a keyed shaft. The ZFY's hex shaft drive system offers the highest knife-tip cutting force of any comparable shredder on the market.You can choose whether you wish to include an in-feed conveyor, an out-feed conveyor, or both for your Stationary Shredder. These conveyors can help make the loading and unloading processes much more efficient for your operators as they automatically carry materials to or from the shredder. Designed to save you plenty of time and effort, in-feed and out-feed conveyors allow for more shredding and increased revenue.Specification

Model	Blade Size	Power(KW)	Blades quantity(pcs)	Reducer	Speed(r/min)	dimension(m)
200	Φ180*15	2.2	18	200	16-24	0.8*0.5*1.3
300	Φ180*20	3	24	240	16-24	1.2*0.6*1.6
400	Φ200*15	4	32	320	16-24	1.4*0.7*1.8
500	Φ200*20	7.5	40	400	16-24	1.4*0.8*2.0
600	Φ200*20	15	48	400	18-25	1.5*0.9*2.0
800	Φ300*30	15*2	32	400*2	18-25	2.1*0.9*2.2
1000	Φ300*30	30*2	32	650*2	18-25	3.4*1.3*2.2
1200	Φ400*40	55*2	38	750*2	18-25	4.2*1.3*2.2
1500	Φ400*50	75*2	48	750*2	18-25	4.2*1.3*2.2
2000	Φ600*60	90*2	38	850*2	18-30	5.3*1.8*2.2
