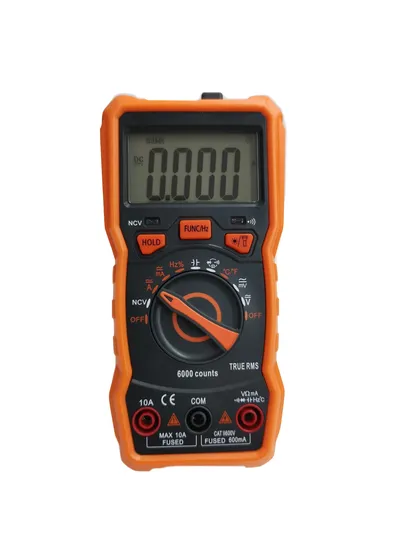

Compact True RMS Digital Multimeter Multimeters Auto Range

Product Description

Company Profile
Introduction:
This multimeter is a multi-function instrument with high accuracy, fast response, and high safety level. It is embedded with a special IC up to 6000 counts which is composed of high-precision A/D converter with high-speed digital processor that can do high-speed true RMS calculation for AC 1 KHz.
With safe and reliable design, this multi-meter can fulfill the needs of various applications such as professional engineers and maintenance engineers.
This meter provides measurements of AC and DC voltage AC and DC current, resistance, capacitance, temperature, diodes and circuit continuity test.
It is equipped with a backlight, allowing users to read the measurement display in a dark place. And NCV function is helpful for users to check and notice the live cable easily.
*Operating conditions:
600V CAT II Pollution grade: 2
Height: under 2000m
Working temperature: 0-40ºC(<80%RH, not considered <10ºC)
Storage temperature: -10-60ºC(<70%RH, take off battery)
*Test or calibrate surrounding temperature: 20ºC±2ºC
*The biggest voltage between measurement end and ground: 600V
*Fuse protection: mA range , fuse: F 600mA/250V
A range, fuse: F10A/250V
*Conversion rate: about 3s/second
*Display:6000 counts LED display
*Overload: 'OL' displayed
*Low voltage display of battery: displayed when the working voltage is low
*Input polarity indicator: shown automatically
*Battery:3 X1.5V AAA
*Size: 147mm (L)*71mm (W)*45mm (H)
*Weight: about 220g (battery excluded)
Features:
1.MAX Display:6000
2.NCV detection
3.Auto ranging
4.True RMS
5.LCD with Backlight
6.Torch light
Sepcifications:
DC Voltage Range: 600mV ~ 600V
Basic Accuracy:±(0.5%+5d)
AC Voltage Range: 600mV ~ 600A
Basic Accuracy:±(1.0%+4d)
Resistance Range: 600Ω~ 60MΩ
Basic Accuracy:±(0.8%+5d)
DC Current range: 60mA ~ 10A
Basic Accuracy:±(1.2%+5d)
AC Current range: 60mA ~ 10A
Basic Accuracy:±(1.5%+5d)
Frequency range: 9.999Hz ~ 9.999MHz
Basic Accuracy:±(1.5%+5d)
Capacitance range: 6nF ~ 100mF
Basic Accuracy:±(4.0%+5d)
Temperature Range:-20~1000ºC
Basic Accuracy:±(1.0%+3d)
Power Supply: 3*AAA battery
Meter Dimension:145x70x45mm
Weight:240g (including batteries)
Accessories: Test Leads, Temperature probe,Fuse, Battery, Manual and Giftbox
