Single-Cylinder Hydraulic Cone Crusher for Construction, Mining Crusher

Product Description

Product Description

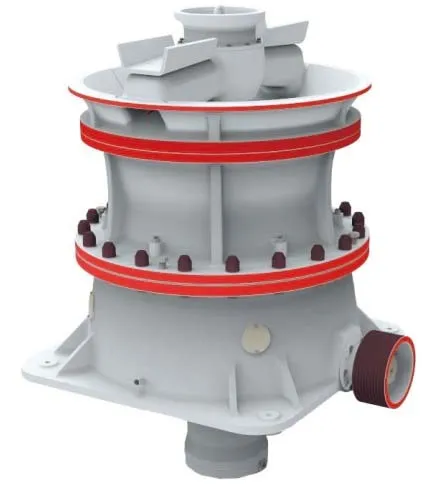

The GP series single-cylinder hydraulic cone crusher is suitable for large and medium-sized sand and ore processing enterprises, and is used for second-level, third-level or fourth-level crushing of ore and rock substrates. The crushing process is completed by the rotary crushing wall and the rolled white wall driven by the eccentric sleeve; the material enters the crushing chamber through the upper feed hopper, and after crushing, it is collected and discharged from the lower part through the output hopper. It has the advantages of high output, low cost of use, exquisite structure, simple operation, convenient maintenance and high utilization rate.
Product Characteristics
1. Wide range of application: it can break harder rocks, and the same host can obtain a variety of cavity shapes by replacing the lining plate, so as to adapt to various applications. The medium crushing model has a stable and large feeding port, which is used for secondary crushing of materials.
2. Good product particle shape: optimize the combination of crushing frequency, eccentricity, and laminated crushing, so that the crushed material with the size of the discharge port maintains a better product particle shape.
3. Lower production cost: the design of the lining plate makes the unit loss lower; lamination crushing and extrusion feed make the equipment operation rate higher.
4. Simple operation and maintenance: with just a button control, the stepless adjustment of the discharge port can be realized by hydraulics, and it can be carried out during the production process to make the operation more intuitive. After processing, the consumable parts are assembled without packing.
Technical Parameter(Chipping)

model	cavity shape	feed port(mm)	maximum feed particle size(mm)	discharge port(mm)	motor power(Kw)	production capacity(t/h)	weight(excluding motor)(kg)
GP100	A	150	120	10-35	90	40-130	7100
	B	130	100
GP200	A	220	170	12-45	160	80-320	13500
	B	150	120
GP300	A	230	180	15-59	250	110-400	21200
	B	160	130
GP600	A	280	220	15-50	315/355	240-700	33000
	B	150	130

Technical Parameter(Medium Broken)

Model	cavity shape	feed port(mm)	maximum feed particle size(mm)	discharge port(mm)	motor power(Kw)	production capacity(t/h)	weight(excluding motor)(kg)
GP300S	A	380	330	35-100	250	250-850	23200
	B	280	240
GP600S	A	490	410	45-100	315/355	300-1300	38500
	B	370	310
