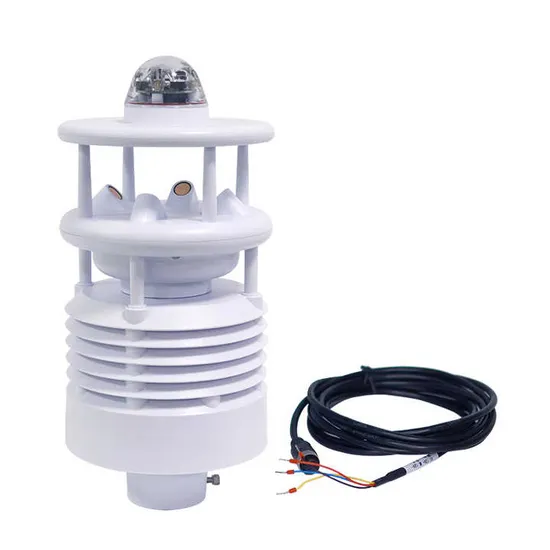

Hot Sale RS485 Modbus Compact Meteorological Monitoring Instrumentation Outdoor Weather Station Sensor for Agriculture

Product Description

Product Description
Description
This integrated weather station can be widely used in environmental detection,integrating wind speed, wind direction, temperature and humidity, noise collection, PM2.5 and PM10, CO2, and atmospheric pressure. The equipment adopts standard MODBUS-RTU communication protocol, RS485 signal output, and communication.
The distance can be up to 2000 meters, and data can be uploaded to the customer's monitoring software or PLC configuration screen through 485 communication, and secondary development is also supported.Main Features
This product is small in size and light in weight. It is made of high-quality anti-ultraviolet materials and has a long service life. It uses a high-sensitivity probe with stable signal and high accuracy. The key components are imported, which are stable and reliable, and have the characteristics of wide measurement range, good linearity, good waterproof performance, convenient use, easy installation, and long transmission distance.
1.Using integrated design of multiple collection devices, easy to install.
2.Wind speed and direction are measured by ultrasonic principle, no start-up wind speed limit, zero wind speed work, no angle limit, 360° Omnidirectional, wind speed and wind direction data can be obtained at the same time.
3.Noise collection, accurate measurement, the range is as high as 30dB~120dB.
4.PM2.5 and PM10 are collected at the same time, range: 0-1000ug/m3, resolution 1ug/m3, unique dual-frequency data collection and automatic calibration technology, the consistency
can reach ±10%.
5.CO2 range: 0-5000ppm, resolution 1ppm.
6.Measure the environmental temperature and humidity, the measuring unit is imported from
Switzerland, and it's with high accuracy.
7.Wide range 0-120Kpa air pressure range, applicable to various altitudes.
8.Using 485 and this communication is stable.
9. As devices is with built-in electronic compass, there is no direction requirement during
installation, and it can be installed horizontally

Specification

Item	Value
Detection Principle	PM2.5, PM10: Laser principle;Air temperature, humidity: imported high sensitivity temperature andhumidity chipIlluminance: photoelectric principle; Noise: sound sensor
Scope of supply	DC12~24V
Measurement range	PM2.5/PM10: 0~1000μg/m³; Temperature: -40~60ºC; Humidity: 0~100%RH Light: 0~100 KLux; Noise: 30~130dB
accuracy	PM2.5/PM10: ±10% of reading; Temperature: ±0.5°C; Humidity:±3%RH Illumination: 2% of reading; Noise: ±1.5
Power Consumption	<1w(12V)
Color	White
signal output	Default 485 output, MODBUS protocol Expandable function: GPS positioning
working environment	Temperature -40~70ºC Humidity 5~90%RH
Installation	Sleeve fixing with optional flange adapter.
protection	IP66

Application
System Description
Company Profile
Xiamen Nengjia New Energy Technology Co., Ltd. is nestled in the picturesque Egret Island of Xiamen. Our company boasts over 500,000 practical outdoor node operation experiences in the Internet of Things. Our team is a dynamic entrepreneurial force with an average age of just 26. We are proud to offer a dedicated R&D team of engineers available .
Net-join New Energy's vision is to simplify the Internet of Things by striving to be a leading provider of professional IoT end-to-cloud system solutions. We offer IoT communication terminals based on 4G/5G/NB-iot/WIFI technologies, and provide industry-specific solutions through customized cloud platform development and services.
Our company's core business focuses on smart lighting, smart agriculture, and smart photovoltaic hardware along with comprehensive cloud platform solutions.Focused on smart lighting, smart agriculture, and smart photovoltaic sectors, we offer professional IoT terminal and cloud system solutions. Our services ensure reliable power supply and seamless information access for outdoor equipment. To date, we have secured 30 software copyrights, 5 invention patents, and 4 practical new patents.
We have achieved 30 software copyrights, 5 invention patents, 4 utility model patents, and 2 design patents.
To safeguard your valuable goods, we offer professional, environmentally-friendly, and efficient packaging services designed to ensure both convenience and protection.
Production process & packing
Certifications
Product-related qualifications and certificates are complete, including high and low temperature test, static electricity test, surge test and export need to use FCC/ROSH/CE and other related certificates, at present the product has been exported to more than 40 countries and regions.
