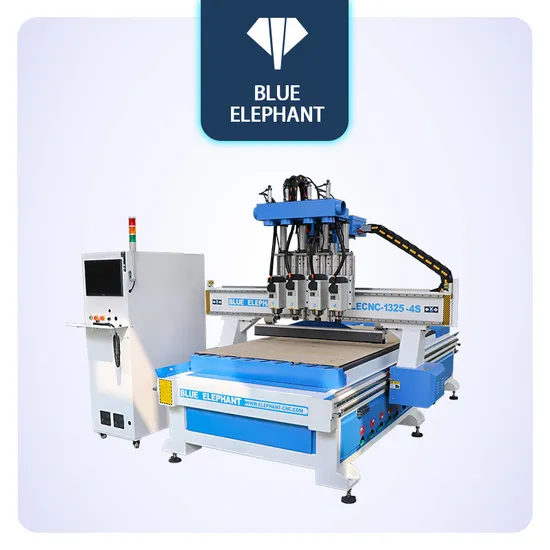

Affordable 1325 Multi-Head Wood CNC Router with 4 Spindles Adopting Automatic Tool Sensor

Product Description

Affordable 1325 Multi-Head Wood CNC Router with 4 Spindles Adopting automatic tool sensor

Description
This is a multi-spindle engraving machine with 4 spindles. The 4 spindles are automatically changed according to the processing requirements. which greatly saves the time of manual tool change and also improves production efficiency accordingly.
Features
1. With an air-cooling spindle, the working speed can reach 18000 RPM per minute.
2. 4 spindles CNC is much more economic than ATc, so it is a good model to choose if you are in the furniture industry.
3. With a heavy-duty frame and gantry; the machine was designed for durable.
4. Adopting automatic tool sensor, can save more time and increase efficiency
Parameters

Description	Parameter
X,Y,Z Working Area	1300*2500*200mm, etc.
Table Surface	Vacuum & T-slot work table
Spindle	4x3.5kw HQD air cooling spindle, ER20
Machine structure	10-12mm steel plant heavy duty body
Inverter type	3.7kw
Control system	DSP A123, option: japan Syntec 60we, Taiwan LNC 2200
Linear guide	20# Taiwan linear guide
Lubrication system	1.5L automatic lubrication system
Command Language	G Code & M Code
Compatible software	Artcam
Traveling speed	40m/min
Working speed	0-25m/min
Working air pressure	0.8MPa

PS: All the working area and specifications can be customized according to your requests.

Application
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Samples show:

Packaging Details:
1. Outside package: Standard marine export plywood case.
2. inner package: Stretchy film and plastic film for humidity.
3. We can package according to your requests.

Delivery Detail: Shipped in 25-30 working days after payment.
Guarantee and After-sale service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
