Precision CNC Horizontal Boring Machine for Versatile Six-Sided Applications

Product Description

Technical Paremeters

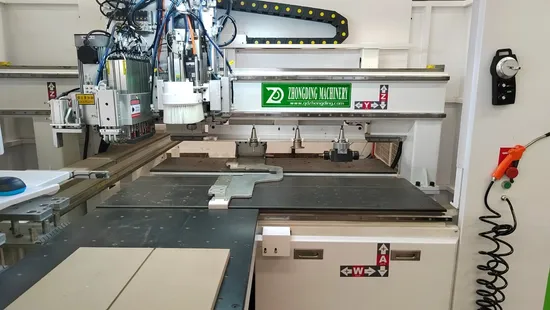

HD-2812 CNC SIX SIDE DRILLING MACHINE

Spindle motor	Brand	CC
	Quantity	2
	Power(KW)	3.5
	Speed(Rmp/min)	18000
	Chuck specifications	ER25
Drive System	Way	Servo drive
	Motor	Eston absolute value servo
	Driver	Eston Absolute Drive
Frequency convere	Brand	EDT
	Power	3.7KW adjustable frequency conversiol
Control System	Higerman system
Reducer	Janpanese shimpo
Guide	Taiwan square rail
Rack gear	Geman high-precision helical gears
Position	Automatic positioning system
Close side	Automatic side close
Electric wire	Highly flexible cable
Bed frame	Heavy lathe bed annealed
Work surface	Air floating tabletop
	High pressure blower 0.75KW
Vacuum cleaner	The upper vacuum port is 200mm; the lower vacuum port is 125mm
Power supply type	380V 50/60HZ

Product Details

Higerman CNC system:
Using Windows human-machine interface, Higerman control system,Intelligent CAM software. Drilling data can be imported using CAD, which is quick and easy to operate.Can match user production design management software, no need to input drilling data independently.
Continuous scanning:
Supports barcode/QR code,Scans to automatically load processing graphics files,And automatically retrieves NC program processing.
Data analysis system:
Automatically analyzes plate data after scanning.Intuitively displays the size, depth and coordinate information of plate holes and slots,Easy to query and correct data.
Independently adjust tool processing speed:
Through processing data analysis,Customize processing speed for each drill bit,More flexible production and processing
Flexible discharging
Optional front/rear/side discharging,with automatic lifting unloading table,multiple unloading options for easy automatic connection
Above drilling bag,spindle Spindle

Fully automatic side push Electric box

Operating platform Below drilling bag
Application

Apply to processing all kinds of density boards,PVC board,artificial board,ABS board,PVC board,and others with wood structure and similar hardness.
