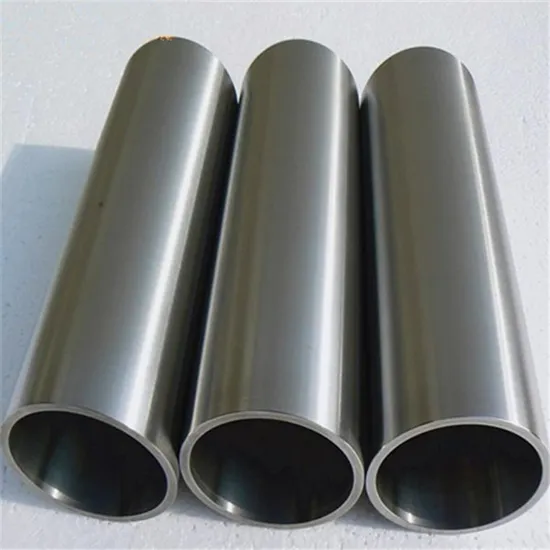

ASTM B381 Grade 12 Alloyed Titanium Forging Pipe for Industry Use

ASTM B381 Grade 12 Alloyed Titanium Forging Pipe for Industry Use

US$15.00-15,000.00 1 kg (MOQ)

Basic Info.

Model NO.
Titanium Forging Pipe
Model Number
Titanium Forging
Cerficication
En10204-3.1b
Surface
Machined
Condition
Annealed
Type
Titanium Forging
Application
Industrial, Medical
Technique
Forged
Grade
GR12
Transport Package
Wooden Case
Specification
30 " - 3000 mm
Trademark
KING TITANIUM
Origin
China
HS Code
8108909000
Production Capacity
500 Tons /Year

Product Description


ASTM B381 Gr.5 Titanium Forging Pipe Size Range from 30 " - 3000 mm
AVAILABLE SIZES
Titanium Forged disc up to 2800kg per piece
Titanium Forged block is squares or rectangles up to 1200mm width
Titanium Forged Ring Size range from 200 " - 3000mm
Titanium Forged bar Size range from 30 " - 400mm
STANDARD
ASTM B381
TYPE
Flange, Ring, Block, Disc, Shaft, Billet, Slab
EXAMPLE APPLICATIONS
Titanium and titanium alloy forgings are machined to flanges for pipe collection, equipment assemble, valve components, undersea seals, tools.
STANDARD CHEMICAL COMPOSITION (weight %, max or range) MECHANICAL PROPERTIES (min)
ASTM B381 UNS
No		 N C H Fe O Al V Pd Mo Ni Tensile Yield El. Red.
Mpa Mpa % %
GR 1 R50250 0.03 0.08 0.015 0.2 0.18 240 138 24 30
GR 2 R50400 0.03 0.08 0.015 0.3 0.25 345 275 20 30
GR 3 R50550 0.05 0.08 0.015 0.3 0.35 450 380 18 30
GR 4 R50700 0.05 0.08 0.015 0.5 0.4 550 483 15 25
GR 5 R56400 0.05 0.08 0.015 0.4 0.2 5.5-6.75 3.5-4.5 895 828 10 25
GR 7 R52400 0.03 0.08 0.015 0.3 0.25 0.12-0.25 345 275 20 30
GR 9 R56320 0.03 0.08 0.015 0.25 0.15 2.5-3.5 2.0-3.0 620 483 15 25
GR 12 R53400 0.03 0.08 0.015 0.3 0.25 0.2-0.4 0.6-0.9 483 345 18 25
GR 23 R56401 0.03 0.08 0.0125 0.25 0.13 5.5-6.5 3.5-4.5 828 759 10 15
TITANIUM MATERIALS SUPPLY SCOPE
TITANIUM GRADE UNS NO. WIRE BAR SHEET PLATE TUBE PIPE FITTING FORGING FASTENER
Ti Grade 1 R50250 √ √ √ √ √ √ X √ √
Ti Grade 2 R50400 √ √ √ √ √ √ √ √ √
Ti Grade 3 R50550 √ √ √ √ X X X √ √
Ti Grade 4 R50700 √ √ √ √ X X X √ √
Ti Grade 5 (6Al 4V) R56400 √ √ √ √ X X X √ √
Ti Grade 7 (0.2Pd) R52400 √ √ √ √ √ √ √ √ √
Ti Grade 9 (3Al 2.5V) R56320 √ √ √ √ √ X X √ √
Ti Grade 11 R52250 √ √ √ √ √ √ X √ √
Ti Grade 12 (0.3Mo 0.8Ni) R53400 √ √ √ √ √ √ √ √ √
Ti Grade 17 R52252 X √ √ √ √ √ X √ √
Ti Grade 23 (6Al 4V Eli) R56401 √ √ √ √ X X X √ √
Notes 1) √-Available, X-Unavailable
Notes 2) For other grades like Ti6Al2Sn4Zr2Mo, Ti6Al6V2Sn, Ti8Al1Mo1V, Ti6Al2Sn4Zr6Mo, Ti15V3Cr3Sn3Al, please contact us for details.
Notes 3) It may differs a little for materials in different sizes, please also contact us.
