Product Description

High Quality Filter Press Manufacturer Use For Industry Sewage Treatment / Chamber Filter Press / Membrane Filter Press / Plate And Frame Filter Press
Product Description of Filter Press
The filter press is suitable for solid-liquid separation of all kinds of suspensions. It is composed of filter plates arranged in a chamber, and under the action of the feed pump, the suspension is pressed into the chamber, and then the solids and liquid are separated by the filter medium (filter cloth)
High Quality Filter Press Manufacturer Use For Industry Sewage Treatment / Chamber Filter Press / Membrane Filter Press / Plate And Frame Filter Press

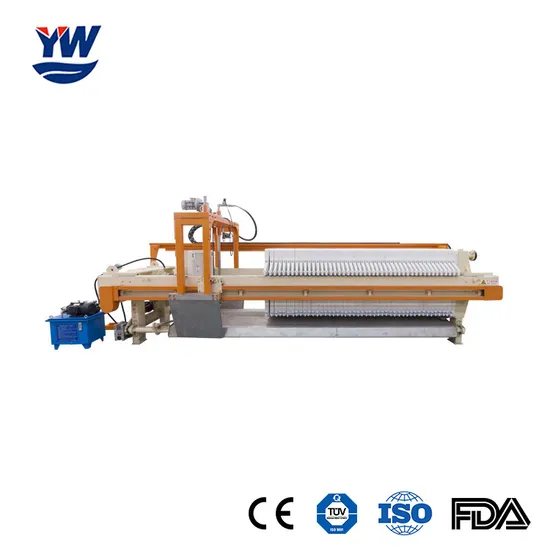

Chamber Filter press with cloth washing system
Chamber Filter Press Cakes
High Quality Filter Press Manufacturer Use For Industry Sewage Treatment / Chamber Filter Press / Membrane Filter Press / Plate And Frame Filter Press
Specification of Chamber Filter Press

Model	Filter Area	Volume	Plate QTY	Pressure	Power	Weight	Dimensions
XM/AZ-30/870	300m2	460L	23pcs	0.6-1.6MPa	2.2Kw	2680Kg	3180*1400*1230mm
XM/AZ-40/870	40m2	595L	30pcs			3050Kg	3570*1400*1230mm
XM/AZ-50/870	50m2	748L	38pcs			3456Kg	4110*1400*1230mm
XM/AZ-60/870	60m2	902L	46pcs			4003Kg	4550*1400*1230mm
XM/AZ-70/870	70m2	1056L	54pcs			4584Kg	4990*1400*1230mm
XM/AZ-80/870	80m2	1210L	62pcs			5082Kg	5430*1400*1230mm
XM/AZ-50/1000	50m2	736L	28pcs	0.6-1.6MPa	4Kw	4128Kg	4040*1500*1400mm
XM/AZ-60/1000	60m2	889L	34pcs			4636Kg	4460*1500*1400mm
XM/AZ-70/1000	70m2	1041L	40pcs			5143Kg	4760*1500*1400mm
XM/AZ-80/1000	80m2	1193L	46pcs			5651Kg	5120*1500*1400mm
XM/AZ-100/1000	100m2	1475L	57pcs			6628Kg	5780*1500*1400mm
XM/AZ-120/1000	120m2	1777L	69pcs			7644Kg	6500*1500*1400mm
XM/AZ-100/1250	100m2	1468L	36pcs	0.6-1.6MPa	4Kw	8307Kg	5020*1800*1600mm
XM/AZ-120/1250	120m2	1746L	43pcs			9308Kg	5470*1800*1600mm
XM/AZ-140/1250	140m2	2063L	51pcs			10455Kg	5990*1800*1600mm
XM/AZ-160/1250	160m2	2341L	58pcs			11492Kg	6450*1800*1600mm
XM/AZ-180/1250	180m2	2619L	65pcs			12494Kg	6905*1800*1600mm
XM/AZ-200/1250	200m2	2896L	72pcs			13504Kg	7360*1800*1600mm
XM/AZ-220/1250	220m2	3214L	80pcs			14652Kg	7880*1800*1600mm
XM/AZ-250/1250	250m2	3650L	91pcs			16227Kg	8600*1800*1600mm
XM/AZ-200/1500	200m2	2998L	49pcs	0.6-1.6MPa	11Kw	20030Kg	6400*2200*1900mm
XM/AZ-250/1500	250m2	3594L	61pcs			22978Kg	7225*2200*1900mm
XM/AZ-300/1500	300m2	4347L	74pcs			26026Kg	8130*2200*1900mm
XM/AZ-350/1500	350m2	5043L	86pcs			29220Kg	8950*2200*1900mm
XM/AZ-400/1500	400m2	5796L	99pcs			32574Kg	9880*2200*1900mm
XM/AZ-450/1500	450m2	6492L	111pcs			35586Kg	10690*2200*1900mm
XM/AZ-500/1500	500m2	7187L	123pcs			38606Kg	11560*2200*1900mm
XM/AZ-500/2000	500m2	9686L	69pcs	0.6-1.6MPa	15Kw	34840Kg	9965*2850*2400mm
XM/AZ-600/2000	600m2	11900L	85pcs			38223Kg	11155*2850*2400mm
XM/AZ-700/2000	700m2	13838L	99pcs			41641Kg	12345*2850*2400mm
XM/AZ-800/2000	800m2	15775L	113pcs			45060Kg	13535*2850*2400mm
XM/AZ-900/2000	900m2	17851L	128pcs			48479Kg	14725*2850*2400mm
XM/AZ-1000/2000	1000m2	19788L	142pcs			51898Kg	15915*2850*2400mm

High Quality Filter Press Manufacturer Use For Industry Sewage Treatment / Chamber Filter Press / Membrane Filter Press / Plate And Frame Filter Press
Advantage of Chamber Filter Press
Higher Feeding Pressure:0.6-1.2MPaAutomatic filter cloth washing system, saving labor cost and prolonging the service life of cloths.The filter press plate is made of reinforced PP material.With higher cost performance, cheaper than other type filter pressesWidely used in various industries, it is the most popular filter press model in the market.Automatic discharge of filter cake, saving labor costs.
Related Products
About Us
Yuwei Filter Equipment Co., Ltd.
is a filter supplier and engineering solution service provider integrating design, manufacturing, research and development, sales and international trade. The company is located at Yuzhou City Henan province in China, covering an area of 50 acres.We have A wealth of project experience and can provide complete technical guidance and integrated installation services.
Contact Us
Workshop
Warehouse
Case
Packing & Shipping
FAQ
1. How long is the delivery time of your product?
The delivery time is within 30 working days. But when the crushing plant is big and the customers have special requirement on the crushing plant, the delivery could be extended.
2. What are the payment terms?
The payment term is T/T.
3. How long is the product warranty period?
Our warranty period is 1 year. Wearing parts and problem coursed by worker's wrong operation are not included.
4. What's the after sale service of your company?
We will provide foundation drawing to the clients for intallation. Besides, we can provide guidance service for installation and operation of workers, etc.
5. Can your company provide wearing parts?
We can produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
