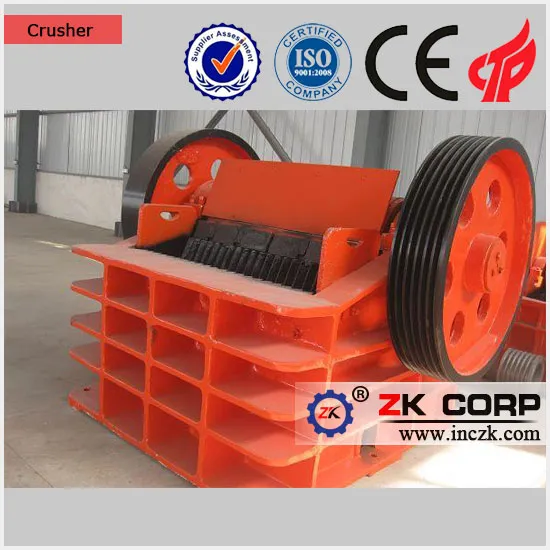

Advanced Design of Jaw Stone Crushers

Product Description

Advanced Design of Jaw Stone Crushers Application of Jaw Crusher:
ZK Jaw Crusher is a trusted and reliable brand for its high quality and good manufacturing. It specializes in producing jaw crusher which is widely applied to crush high hardness, MID hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost per ton.
Jaw Crusher series have many advantages, such as big reduction ratio, even granularity, simple structure, reliable working condition, convenient repair and economic operation, which are widely used for mine, smelting, building material, road, railway, irrigation works, chemical and materials with compression strength no more than 320 Mpa.
The structure of Jaw Crusher:
The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs.
The Features of Jaw Crusher:
Jaw Crusher is of various types;
Jaw Crusher is suitable for crushing maximum, medium and minimum stones;
The operating principle of Jaw Crusher is easy to be operated;
The structure of Jaw Crusher is simple and it is easy to maintain;

model	Size of feed opening	Max feed size	Discharge range opening	Capacity (m3/h)	Motor power (kw)
	(mm)	(mm)	(mm)
PE-250x400	250x400	210	20-60	3-15	15
PE-1000x1200	1000x1200	850	195-280	190-275	110-132
PE-1200x1500	1200x1500	1020	150-300	250-500	160
PEX-150x500	150x500	120	10-40	3-13	11
PEX-300x1300	300x1300	250	15-50	20-60	75

Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com & http://hnzkjq.en.made-in-china.com & http://hnzkjq.en.made-in-china.com
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com/calcining.html
Rotary Kiln:http://hnzkjq.en.made-in-china.com/calcining.html
Preheater: http://hnzkjq.en.made-in-china.com/calcining/8.html
Cement Mill: http://hnzkjq.en.made-in-china.com/grinding/17.html
Rotary Dryer: http://hnzkjq.en.made-in-china.com/calcining/116.html
Raw Mill: http://hnzkjq.en.made-in-china.com/grinding/16.html
Trommel Screen:http://hnzkjq.en.made-in-china.com/separating/137.html
Rotary cooler:http://hnzkjq.en.made-in-china.com/calcining/6.html
Our service:
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory?level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with
you. We will provide you with the most suitable products with the reasonable price.
