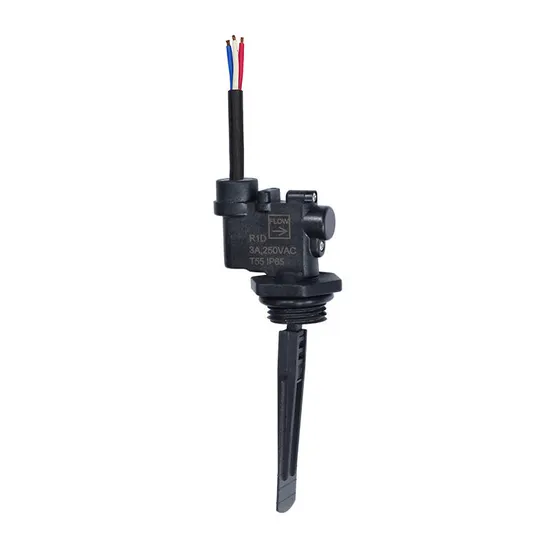

Ultimheat Water Flow Detection on Water Pipe Cuttable Paddle Switch 1/2"BSPP Male Thread 3A 250VAC PPO Cable Length 1500mm

Product Description

Product Information Main uses: Water flow detection on water pipes Functional principle: Balanced paddle, perpendicular to the main flow, actuating a micro-switch. Flexible elastomeric gasket between paddle and electric switch Main housing material: PPO, fiber glass reinforced, usable with potable water. Paddle material: Polypropylene, resistant to ozone and water disinfection products Paddle gasket: Santoprene, resistant to ozone and water disinfection products Electrical rating: 3A resistive, 250V AC Electric contact type: SPDT, open or close by flow rise Liquids compatibility: For use with clean water and liquids without chemical incompatibility with PPO and Santoprene Nominal pressure at 20°C: 1MPa (PN10) Nominal diameter: Can be used on 32 to 63 mm internal diameter pipes The paddle is cleavable and can be cut at various lengths upon pipe diameter. There are cutting lines numbered 1 to 9 every 5mm. Recommended mounting position: Vertical, with paddle downside. Other positions are possible with a change in the calibration value related to the paddle weight. Water pipe connection: Male thread ½"(BSPP) and NBR gasket. Must be used on a BSPP ½" female fitting perpendicular to the main pipe. Recommended torque: 7Nm Liquids temperature range: 5 to 80°C Ambient temperature range: 5 to 50°C Ingress protection: IP65 Electrical connection: 3 × 0.75 mm² cable, PVC insulation, style H05VVF. 2 ways connection block on models with enclosure. Installation instructions: - Check carefully the paddle orientation: The arrow on housing must be exactly parallel to the pipe - A 5 mm minimum gap must be respected between end of the paddle and tube wall opposite to the ¾" fitting. - We recommend the use of nozzles of length less than or equal to 18mm between the gasket seat and the inside of the tube and with an inner diameter greater than or equal to 20mm, to avoid blocking of the pallet Accessories: ½" female PVC saddles for DN40 to DN100 (OD) PVC pipes, and other fittings: see section 8 of this catalogue. Options: cable with connector or terminals, other cable length, paddle type B (see type R1B) Cable length1500mm

	500mm Cable length	1m Cable length	2m Cable length	With enclosure
Reference	R1DH05079F43N050	R1DH05079F43N100	R1DH05079F43N200	R1DH05079F43N00C
