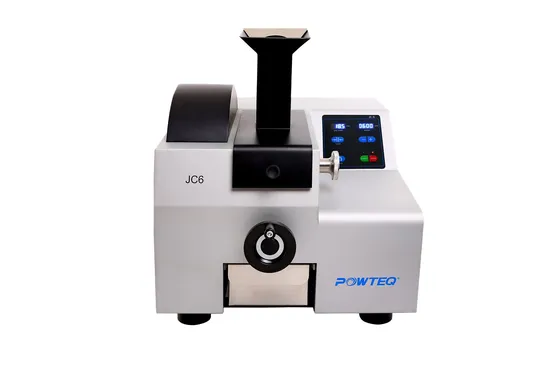

Desktop Lab Jaw Crusher with Compact Design and Easy Operation

Product Description

JC6 and JC5 are basically the same in application field and work principle. And both has the advantage of zero point correction to compensate for wear. Unlike JC5, JC6 is designed for desktop. JC6 features in the compact design, easy operation and the high final fineness of sample (d90 < 0.5 mm).

Application

○ Mining and metallurgical industries:niobium and titanium alloy, vanadium iron, chrome vanadium, tungsten carbide, ore, coal, slag, coke
○ Chemical products: wide variety of chemical industry raw materials
○ Geological and mineralogical: rock, granite, basalt, barite, silicate
○ Ceramic industry: talc, sintered clay, sintering ceramic, electric ceramic
○ Building materials: bauxite, slag brick, quartz, cement

Working Principle

The sample enters the grinding chamber via the anti-splashing hopper. The crushing is proceeded inside the wedge-shaped shaft space between two jaw plates. one jaw plate is fixed, while the other jaw plate is driven by a bent axle to perform oval movement with the continuous rotation of the motor. The sample is crushed due to extrusion caused by constant movements of the jaw plate and moves downward under the effect of gravity. In case the grain size of the sample is less than the lower opening gap of jaw plates, it will fall to the drawer receiver at the lower part of the machine.

Features and Advantages

○ High throughput, high degree of size reduction.
○ Zero point adjustment to compensate the wear.
○ Anti- splash design hopper.
○ Easy-to-clean crushing chamber.
○ Excellent performance and high final fineness (d90 <0.5 mm).
○ Jaw plates in different materials(Manganese steel,Stainless steel,Tungsten carbide,Zirconium oxide,Steel of heavy- metal-free,Industrial plastic )

Technical Data

Feed size	<40mm
Final fineness	<0.5mm
Speed	500-1000rpm
Collector capacity	3L
Jaw plate width	59.5mm
Gap setting	0~11mm
Zero point adjustment	Yes
Rated power	1.1KW
Power supply	220V,50Hz/60Hz
Instrument size(W*D*H)	450×630×490mm
Package size(W*D*H)	870×720×750mm
Weight	93kg

*Information on this site is provided for information purposes only and the contents hereof are subject to change without notice.
