automatic duct rodder duct push rod duct rod pusher
Product Description
Product Descriptionautomatic duct rodder duct push rod duct rod pusherDuct rodder, also called fiberglass duct rodder, it is a powerful auxiliary tool used for rope traction in the pipe.
Smooth and flexible surface of the duct rodder can easily make the rope or cable pass through the narrow channel. And according to the construction,the duct rodder can be divided into fiberglass duct rodder and traceable duct rodder.According to the movement type, it can also can be divided into duct rodder withwheel and portable duct rodder.Fiberglass duct rodder, an excellent auxiliary tool, is commonly used in track construction where cable and electric wire is hard to be pulled into cable, pipes and conduits.
| Technical data of Fiberglass Duct Rodder | |||
| Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 | |
| Rod Length (m) | 50-500m | ||
| Frame Spec.(mm) | 50cm*40cm*15cm, 67cm*57cm*16cm,130cm*120cm*48cm | ||
| Wheel Diameter(mm) | 300mm | ||
| Wall thickness of Metal Frame | 2.2mm | ||
| Color | blue, yellow, red, white etc | ||
| Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature | |
| Rod Outer | High Density polyethylene coating | ||
| Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | ||
| Wheel | rubber | ||
| Brake | Yes | ||
| Drawing head | copper | ||
| Physical Characters | Density | 55g/m | |
| Working temperature | -40°C to +80°C | ||
| Breaking tension | 100kg | ||
| Bending Radius | 295mm | ||
| Technology | Pultrusion | ||
| Packing | Inside | plastic woven strip wind around the frame | |
| Outside | Wooden pallet and Wooden box | ||

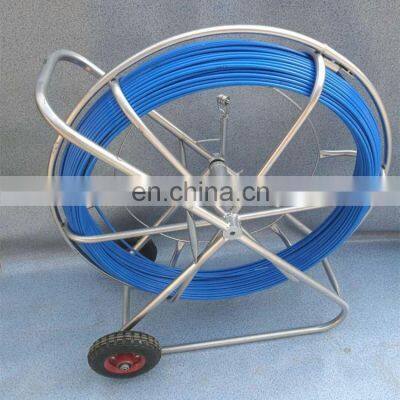

More display for fiberglass duct rodder:
