Plastic Ice Cream Packing Bowl Bucket Disposable Water Cup Making Machine

Product Description

I. Usage:

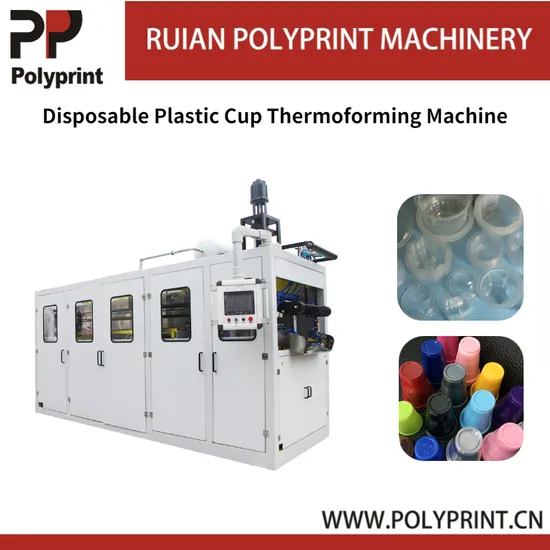

PP-760A Automatic Cam Plastic Cup Thermoforming Machine is mainly used to from PP/HIPS/PET/PVC sheet into various kinds of disposable plastic cups, such as hot/cold drinking cup, ice-cream cup, yogurt cup, milk cup, jelly cup, juice cup,etc. It could also make some regular shape products, such as plate, bowl, cover, dish, box, etc with different moulds.
II. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor with inverter and the feeding length can be set through touch screen.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.
4) The up mould is fixed and the mould plate movement is driven by toggle cam system.
5) The temperature of each zone is controlled by Temperature control module.
6) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
7) We adopt square steel to make the machine frame stronger.
8) The machines is controlled by PLC and touch screen.
Technical Parameter:

Model	PP-760A
Machine Control Method	PLC & Touch Screen
Max. Guide Plate Area	520mm X1200 mm
Max. Forming Area	760mmX420 mm
Running Speed	15-32 cycles/min(According to sheet thickness, material used and product shape)
Sheet Width For Feeding	500 - 660 mm in rolls
Mode of Mould Cutting	In mould automatic
Sheet Thickness Range	0.20 - 2.0 mm
Suitable Material	PP, PS, HIPS, PET, PVC
Max. Forming Depth	160 mm
Master Motor Power	15KW
Max. Sheet Roll Dia.	800 mm
Heating Method	Top + bottom Heating Oven Heating with IR Ceramic Heater
Temperature Control Method	Temperature Controller and Temperature Control Module
Water Consumption	(15-20ºC) 0.5-1.0m³/h(recycled Water)
Air Consumption	1.3-1.6m³/min, 0.6-0.8Mpa
Sheet Feeding Method	2.2KW Gear Motor
Plug Stretching Method	Binodal Air Cylinder φ125mm
Approx. Dimension	4.3×1.5×2.3m
Approx. Weight	7200Kg

Samples:
Our Services:
1.Warranty:1 year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2. Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3.Quotation: valid for 60 days.

Packaging Shipping:

Company Information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.
