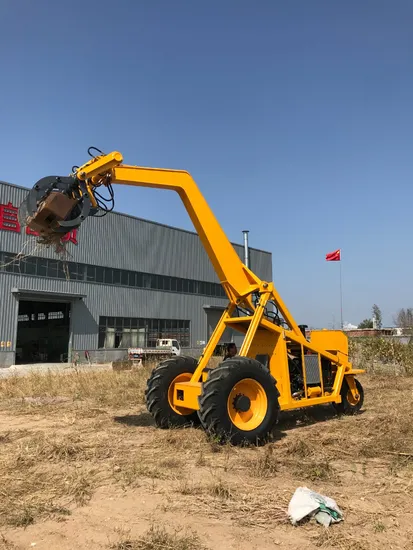

Hy-4200 Three Wheel Cane Grab Loader in Stock
| US$33,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HY-4200
Application
Rice, Corn, Fruit, Straw
Power Source
Hydraulic Turbine
Harvest method
Picking
Drive Type
Gear Drive
Transmission
Hard Shaft
Certification
CE
Color
Yellow
Condition
New
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Warranty
One Year
Transport Package
Nude Package
Specification
5800X2200X2200mm
Trademark
HONGYUAN
Origin
Qingzhou, China
HS Code
84295100
Production Capacity
1000 Units/Year
Product Description
OverviewProducts Description
| Maximum Dumping Height | 5000mm |
| Engine Model | 4BT3.9-C125 |
| Rated Power | 125HP |
| Engine Brand | Cummins |
| Total Machine Weight | 5020KG |
| Max, Grab Capacity | 600KG |
| Working Efficiency | 1000kg/min |
| Hydraulic System Working Pressure | 20Mpa |
| Maximum Flux | 63ml/r/63 ml/r |
| Slope | 25% |
| Maximum Hauling Force | 29KN |
| Walking Speed | ≤7km/h |
| Overall Dimension(L×W×H) | 5700*2200*2300mm |
| Min. Ground Clearance | 533mm |
| Tread | 1780mm |
| Wheelbase | 3062mm |
| Tyre Model | 18.4-30(Front dual) |
| 400-60-15.5(Rear one) |
Company Profile
Certifications
FAQ
Q:All Of Hongyuan Wheel Loader Has CE Certification?
A:Yes.They all Have CE Certications.
Q:What Products Dose Hongyuan Machinery Company Has?
A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.
Q:Dose the Hongyuan Machinery Has Their Own Factory?
A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.
Q:Dose the Hongyuan Machinery Has Good Service?
A:Yes,of course. We Have a Professional Sale and After-Sales Service Team. We require all the personnel of the service must be within 24 back to all customer inquiries.
