C6241 Good Price Quality Chuck Machine Manual Lathe for Sale
Basic Info.
Model NO.
C6241
Type
Horizontal Lathe
Processing Accessory
Manual Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Toolpost
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
C6241 Good Price Quality Machine Manual Lathe
Max.Swing Over Bed
410mm
Distance Between Centers
1000/1500mm
Tool Post Type
4-Way Toolpost
Spindle Motor
5.5kw
Chuck
Manual Chuck
Voltage
380V
MOQ
1 Set
Delivery Time
1 Month
Spindle Bore
58mm
Width of Bed
300mm
Spindle Nose
D1-6
Spindl Speed
25-2000rpm
Key Word
Gap Bed Lathe Machine
Control
Manual Lathe Machine
Transport Package
Wooden Case
Specification
C6241
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
275.00cm * 112.00cm * 162.00cm
Package Gross Weight
2050.000kg
Product Description

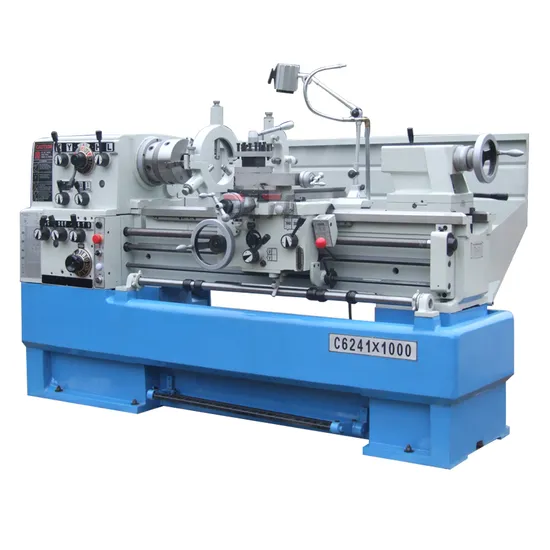

C6241 Good price quality chuck machine manual lathe for saleC6241x1000, C6241x1500
Features:
1.The spindle system is high in rigidity and accuracy.
2.The design of the main drive is optimized and the gears in the headstock are precision ground.
3.The noise of the machine is low.
4.The machine can turn about 200 kinds of metric, inch, module and D.P. threads.
5. Automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and reliable pedal braking device providing quick and effective stop while operating.
| Model | C6241/1000 | C6241/1500 |
| Max. swing over bed | Φ410mm | |
| Max. swing over cross slide | Φ220mm | |
| Max. swing over gap | Φ640mm | |
| Valid length of gap | 165mm | |
| Distance between centers | 1000mm/1500mm/2000mm | |
| Width of bed | 300mm | |
| Max.section of tool | 25×25mm | |
| Max. travel of cross slide | 285mm | |
| Max. travel of compound rese | 128mm | |
| Spindle bore | Φ58mm | |
| Spindle nose | D1-6 | |
| Taper of spindle speed | MT6 | |
| Range of spindle speed | 12 steps 25-2000r/min | |
| Leadscrew pitch | 6 mm or 4T.P.I. | |
| Range of metric longitudinal feeds range | 0.031-1.7mm/rev (42 kinds) | |
| Range of inch longitudinal feeds | 0.0011"-0.0633"/rev (42 kinds) | |
| Range of metric cross feeds | 0.014-0.784mm/rev (42 kinds) | |
| Range of inch cross feeds | 0.00033"-0.01837"/rev (42 kinds) | |
| Range of metric threads | 0.1-14mm (41 kinds) | |
| Range of inch threads | 2-112 T.P.I.(60 kinds) | |
| Range of Diametrical pitch | 4-112 D.P. (50 kinds) | |
| Range of module pitches | 0.1-7 M.P.(34 kinds) | |
| Dia. of tailstock sleeve | 60mm | |
| Travel of tailstock sleeve | 130mm | |
| Morse taper of tailstock sleeve | MT4 | |
| Power of main motor | 5.5kw | |
| Power of coolant pump | 0.1kw/ 3PH | |
| Overall diamension(L*W*H) | (1000mm):2200x1080x1340mm | |
| (1500mm): 2750x1080x1340mm | ||
| Packing size(L*W*H) | (1000mm):2250x1120x1620mm | |
| (1500mm):2800x1120x1620mm | ||
| N.W/G.W | (1000mm): 1580/1850kg | |
| (1500mm): 1750/2050kg | ||
