Construction Tool Profile Metal Automatic Sign Bender Making Channel Letter Bending Machine
| US$6,250.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BWZ-A
Warranty
2-year
Condition
New
Certification
CE
Automation
Automatic
Suitable for
Aluminum, Alloy, Stainless Steel
Type
Beading Machine
Working Principle
Auto Feeding, Slotting and Bending
Availabe Material
Aluminum, Stainless Steel, Galvanized Iron
Bending Radius
7mm
Max Processed Width
160mm
Slotting
Air Cylinder Control
Stainless Steel Motor
Servo Motor
Control System
Adt
Material Thickness
Aluminum 0.3-1.5mm, Stainless Steel 0.3-1.2mm
File Format
Dxf, Ai, Plt
Machine Power
2500W
Machine Weight
500kg
After-Sale Service
Engineer Speaking English Available
Working Voltage
220V50Hz1p
Net Weight
5000kgs
Overall Size
2680*880*1590mm
Transport Package
Standard Export Package Which Can Protect Machine
Specification
CE, SGS, TUV
Trademark
BYTCNC
Origin
Weifang, China
HS Code
84798190
Production Capacity
200 Sets/Month
Packaging & Delivery
Package Size
195.00cm * 85.00cm * 181.00cm
Package Gross Weight
520.000kg
Product Description

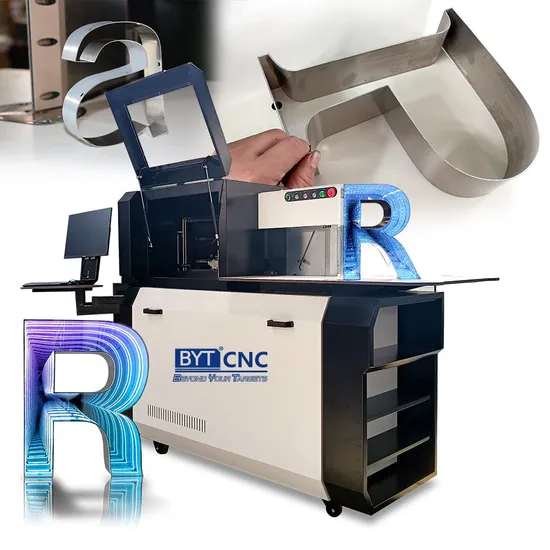

Product DescriptionBYTCNC Stainless steel channel letter bending machine for metal signs
Technical parameter :
| Channel letter bending machine parameter | |||
| Model | BWZ-A | ||
| Working Principle | High precision automatic feeding,trimming,notching and bending | ||
| Processing Materials | Flat Stainless steel ,Aluminum profile ,Iron &Copper plat | ||
| Material Width | 10-220mm | ||
| Material Thickness | Aluminum profile 0.3-1.5mm, Stainless steel 0.3-1.2mm | ||
| File format | AI/DXF | ||
| Mini pat radius | R≥3.5MM | ||
| Mini extrusion Radius | R≥7 MM | ||
| Peak Power | 2000W | ||
| Length Accuracy | 0.1mm/meter | ||
| Feeding Torque | >45Nm | ||
| Planer Slotted Torque Peak | >30Nm | ||
| Arc Bending Torque Peak | >100Nm | ||
| Working Pressure | 0.3-0.6mpa | ||
| Voltage | 220V 50HZ 1P | ||
| Overall Dimensions | 2680*880*1590mm | ||
| N.Weight | 500kg | ||
FAQ:
1) This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine has any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name
or your detailed address. There will be best shipping freight and machine price send to you.
