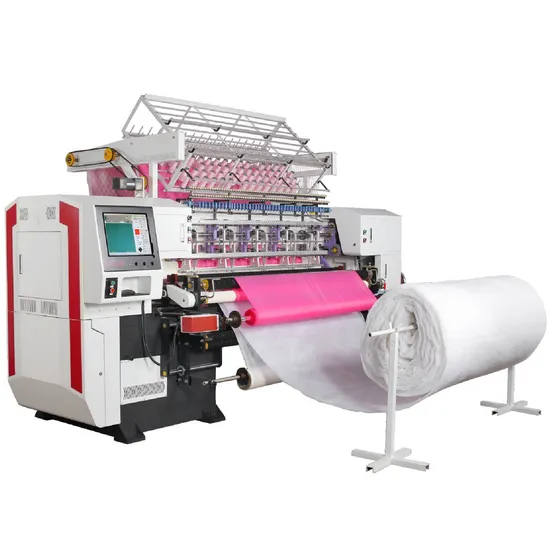

Computerized Lock Stitch Multi-Needle Quilting Machine

Product Description

Quilting Machine
It is widely used for quilting high-quality garments, quilt covers,hand
bags, gloves, sleeping bags, pajamas, bed, spreads, seat covers, plus
material and household ornaments.
Computerized Lock Stitch Multi-needle Quilting Machine
Double swing arm movement mechanism
Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structurecan avoid lubrication and dirty material effectively.
Material rack separation structure
Optimized mechanical structure, realizing high rigidity macchine body and structure, thus make the machine run faster and rmore stable. Material rack separation structure, can reduce the load cof the rack effectively.
Multi-span independent pattern
Adopting the new structure of press plate's adjusting
makes thhe machine much simple. Multi-span independent pattern (360°and 180° patterns are available). Advanced and practical up thread-break detection unit.
New generation of CNC system
Computerized automatic needle-lifting speed adjustment, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting.
Extremely precise
Easy preparation of CAD drawing extremely precise.
Different patterns in each line can be quilted on 3.2m
fabric and patterns can strongly combine. Able to quilt
simple embroidery patterns.
Usage scenarios
Finished product display
Main technical parameters

Unit:mm]	TD-64-2B	TD-94-2 B	TD-112-2B	TD-128-2 B
Size (LWH):	3800 1320 1800	4650 1320 1800	5180 1320 1830	5550 1320 1830
Quantity of needle bar:	3	3	3	3
Quilting width:	1600	2400	2850	3250
Space between needle row	76.2,152.4	76.2,152.4	76.2.152.4	76.2,152.4
Space between needles:	25.4	25.4	25.4	25.4
X-axis movement displacer	203.2	304.8	304 8	304.8
Thickness of quilting:	<25	<25	525	<25
Stitch length:	2~5	2~5	2~5	2~5
Speed of production ( m/h	20~120	20~120	20~120	20~120
Model of needle:	16# 19#	16#, 19#	16#. 19#	16#, 19#
Speed of main shaft (RPM	550~750	550~750	500~750	450~650
Total power required:	5KW	5KW	6KW	6KW
Voltage :	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ
Gross weight:	3200 KG	4200 KG	4500 KG	5000 KG

FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
