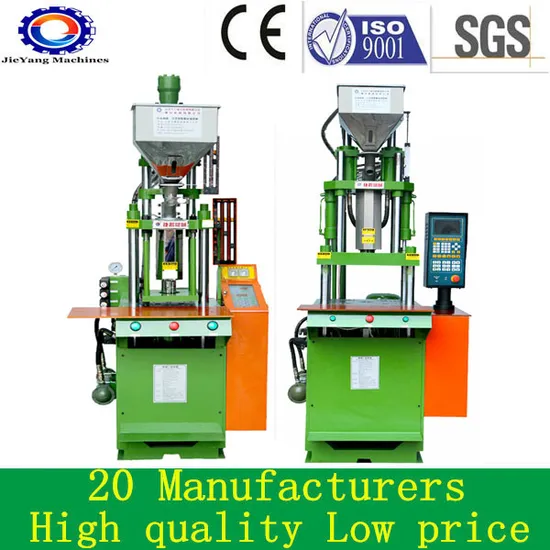

35ton Hand Small Standard Vertical Plastic Injection Moulding Machine

Product Description

1. Function of Plastic Injection Molding Machine Machinery:
1.Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.
2.With double slide table or rotary design, putin, take out products and molding finish at the same
time, which is more safe and efficient for production , thenreduce the cost of production.
3.High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatlyextend machine
& mold life.
4.Nitride and NIP/ Nitroflon coated screws and barrels are long-lasting, robust and
provide superior acid/alkaline resistance.
5.Standard : Varuable Pump for Energy Saving 30%-50%.
2. Parameter of Plastic Injection Molding Machine Machinery:

JY-250ST-D/500ST-D/1000ST-D Technique specification
Model		Units	JY-250ST-D			JY-500ST-D			JY-1000ST-D
Injection System	Screw Diameter	mm	26	28	30	32	35	42	42	45	48
	Injection Pressure	Kg/cm2	1530	1270	886	1642	1358	960	1469	1280	1125
	Theoretical Shot volume	cm3	61	70.8	81	113	134	194	221	254	288
	Max. Shot Weight(P.S)	9	56	64	74	102	102	176	199	228	260
	Injection Rate	cm3/sec	57	66	76	49	59	84	106	121	183
	Screw speed Max	rpm	0-205			0-190			180
	Temperature Control	ZONE	3			4			5
Clamping System	Clamping Force	T	35			55			120
	Slide Platen Size	mm	350*350			450*450			550*550
	Distance Between Tie Bare	mm	375*205			410*280			630*425
	Min Mold Height	mm	150/100			250/200			480/280
	Opening Stroke	mm	180			200			300
	Max. Open Daylight	mm	3300/280			450/400			780/580
	Ejector Force	T	1.3			1.5			4.8
	Ejector stroke	mm	135			150			200
Power&Heading System	Max. Hydraulic Pressure	Kg/cm2	140			140			140
	Pump Output	L/min	34.5			40			56
	Pump Motor Power	Kw/HP	3.75/7.5			7.5/10			14.5/22
	Barrel Heating Power	Kw	2.4			4.5			6
	Total Wattage	Kw	6.3			12			20
Others	Machine Dimensions(L*W*H)	m	1.5*1.05*2.72			2.2*1.2*33.33			2.3*1.4*2.7
	Shipping Size(L*W*H)	m	1.8*1.5*3.2			2.4*1.3*2.6			2.45*1.5*2.8
	Machine Weight	T	1.7			3.3			6.5
	Shipping Weight	T	2			3.6			6.7

Dongguan Jieyang Machinery Co., Ltd is established in 2005, which is located in Xincheng Industrial Zone of Hengli Town. Our factory is about 2000 square meters. We have more than 20 years manufacturing experiences of vertical plastic injection molding machines with precision machining equipment and professional team. We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers.
We warmly welcome you to visit our factory, we are waiting for you at JieYang!
Our Goal: "Customer Satisfaction, Continual Improvement and Innovative Service" is the driving force for our company to moving forwards. We will devote every efforts to do our best level.
3. Application:
1.Electric parts
2.Coil encapsulation parts
3.Daily products like microwave electriciron shells etc.
4.Auto industry
-Lamp reflector/Large parts of hood ,and rear doors,electric heating box,engine hood,horn box,big lamp shell and branch electric head etc.
5.Precision parts
Circuit breakers shell without fuses,motor shell ,loudspeaker box,cassette and video parts,copying machine,faxing machine,printing machine,medical equipment,measuring apparatuses etc.
4. Packing & Shipping:
1. Before shipping,we will check and test the machine carefully.
2. We will arrange to manufacture the second day after your confirmation,we can delivery it usually after 25 days.
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us.
Youtube Video of Vertical Injection Molding Machine: 1. https://youtu.be/057GXPzqVdg (15tons for usb cable) 2. https://youtu.be/GbqaFx6VfRw (15tons for patch cord) 3. https://youtu.be/rFBT0hXSCQQ (25tons for dc plug ) 4. https://youtu.be/RpGH9oKupH8 (25tons for VGA) 5. https://youtu.be/o4TZ7Kc8RJ4 (25tons for fuse holder) 6. https://youtu.be/o1kMwthMx-I (35Tons for Oxygen tube) 7. https://youtu.be/CHEJshwKrXU (35tons for security seal lock) 8. https://youtu.be/L7DKbu1cj3s (lab dumbbell plastic sample) 9. https://youtu.be/ulByfm50_bs (45tons for BS plug ) 10. https://youtu.be/P1OLBd652Xo 45tons for Tools plug 11. https://youtu.be/KEQ67i4lPJY 45tons for Europeran plug 12. https://youtu.be/37wobT7-tqY C type 55tons for European plug 13. https://youtu.be/EKRNtaxmtTc Single Sliding Vertical Injection Molding Machine 14. https://youtu.be/iUOU47cxrAg double Sliding Vertical Injection Molding Machine 15. https://youtu.be/fY_RkC-bt9Y Door handle making by rotary table injection machine 16. https://youtu.be/6pyClKEu5XQ Glue nails making by rotary table injection machine 17. https://youtu.be/EHPlnn88Qe0 Two color rotary table injection machine 18. https://youtu.be/Fno7_FFUY1c Vietnam feedback video (rotary table injection machine overmolding speaker) 19. https://youtu.be/RgFyyAi9sbo Vietnam feedback video about making plug insert 20. https://youtu.be/CPJonVclpLo Thailand client feedback video about making 3 pins plug 21. https://youtu.be/Wo3xcb1QtFU South Korea feedback video 22. https://youtu.be/CzQ2ThInMEQ Italy client feedback video 23. https://youtu.be/q2ZN-rW9A-Y Syria client feedback video 24. https://youtu.be/RKIp2l_Yvko Tuniasia client feedback video 25. https://youtu.be/uUZ6igo_oHs Germany client feedback video 26. https://youtu.be/r3pL9n33fvU Argentia client feedback video 27. https://youtu.be/IdGpr7y5mMw India client feedback video (rotary table injection machine ) 28. https://youtu.be/6zcRdcOyjgw India client feedback video (standard 55tons injection machine making cap ) 29. https://youtu.be/61LqO6cLp3o India client feedback video (usb cable) 30. https://youtu.be/cs4wERUMoNI Sri Lanka client feedback video 31. https://youtu.be/84lbRneECYk Pakistan client use our machine 32. https://youtu.be/r3PO370hQko Turkish client feedback video 33. https://youtu.be/vrr6oJTrsj8 Egypt client feedback (55tons injection machine making plug )
34.https://youtu.be/SaxEgd-DfrU Mexico client feedback video

6. RFQ:

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Where is your factory? How can visit you?

A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.

Q5: Why choose Jieyang Machinery Co., Ltd.?

A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
