1.General description of Waste Plastic PP PE HDPE LDPE Film Bag Recycle Pelletizing Machinery
PE PP Plastic film granulator / Waste film pelletizing machine1. Capacity: 100kg/h-800kg/h2. Type: Water-ring pelletizing,Water cooling strand pelletizing line,Hot cutting granulator and Two stage pelletizer
The usage and characteristic
*This water-cooling single screw plastic pellet making machine is one stage plastic regenerative pelletizer, which is suitable for many kinds plastic waste materials recycling and making pellet, such as PP, HDPE, LDPE, LLDPE Film and clean woven/nonwoven bag materials, etc. The film can be pressed in compressor and then be pelleted.*And also has very developed design, makes sure this machine has a long working life and economical efficiency in using.
Parameters of Waste Plastic PP PE HDPE LDPE Film Bag Recycle Pelletizing Machinery

Model	Screw dia. (mm)	L/D	Screw speed max. (rpm)	Main motor power (kw)	Output (kg/h)
XJ45	45	25-36	20-120	5.5-11	18-40
XJ65	65	25-36	20-120	15-37	40-90
XJ90	90	25-36	20-95	37-75	100-250
XJ120	120	25-36	20-80	55-110	250-380
XJ150	150	25-36	20-80	110-160	300-450
XJ180	180	25-36	20-80	180-250	400-650
SJB75	71	28-68	600	160	400-500
SJB85	81	28-68	600	220	500-600
SJB95	93	28-68	600	350	800-1000
SJB110	108	28-68	600	450	1000-2000

2.The type of pelletizing line for your optional
2.1 Water ring pelletizer
It has advanced technology.It has the best quality and the lowest price.
This machine is equipped with gearbox specially-designed for hard tooth face ; 38CrMoALA nitrided screw and barrel; non-stop screen-changer, cooling water tank, blower fan, hob-style granule-cutter. It is suitable for the recycling and pelletizing of PP, PE, PS, PET, ABS, PC, PVC, ect.
Machine consists of:
Belt conveyor → Compression barrel → Efficient extruder → Non-stop hydraulic screen filter changer → Water ring cutting → Centrifugal dehydrator machine →Vibration machine → Air conveying system → Storage silo
Main techinical parameters

Model	Screw dia. (mm)	L/D	Screw speed max. (rpm)	Main motor power (kw)	Output (kg/h)
XJ45	45	25-36	20-120	5.5-11	18-40
XJ65	65	25-36	20-120	15-37	40-90
XJ90	90	25-36	20-95	37-75	100-250
XJ120	120	25-36	20-80	55-110	250-380
XJ150	150	25-36	20-80	110-160	300-450
XJ180	180	25-36	20-80	180-250	400-650
SJB75	71	28-68	600	160	400-500
SJB85	81	28-68	600	220	500-600
SJB95	93	28-68	600	350	800-1000
SJB110	108	28-68	600	450	1000-2000

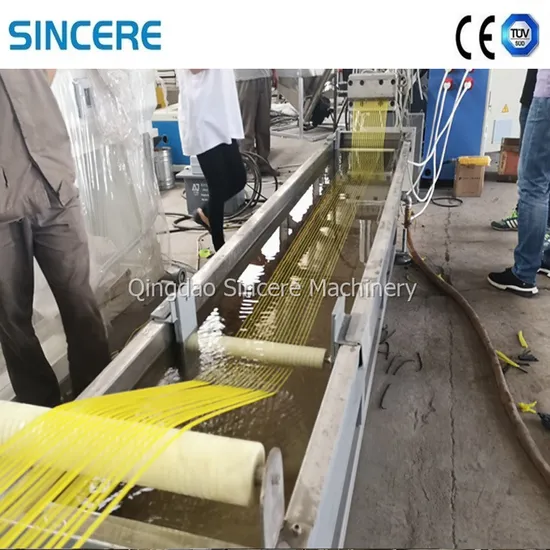

2.2 PP PE PET ABS PMMA Water cooling strand granulator.
The advantages of Water cooling strand pelletizing line:
*Improve the efficiency of resource utilization
*The water cooled rod granulation line has the characteristics of high automation and high production efficiency.
*The water-cooled stretch pelletizing line has excellent quality stability of pelletizing, and the output pelletizing products have uniform quality and consistent specifications, which meet the needs of customers.

Strand type pelletizing Machine consists of:
Single screw extruder→mastermatch feeder→Screen changer→Strand die head→Water cooling tank→Pelletizer→Vibrating screen→fan transportation and cyclone
2.3 Hot cutting pelletizng line. PVC pelletizing line. WPC WPE pelletizing line.
This process is mainly used for pelletizing of materials that are likely to absorb water,or are not easily dewatered for dried, or to which moisture content may result in adverse effect on quality. As materials never contact with water during the whole pelletizing process, there is no need to remove water.
This product is widely used in wood plastic granulation and PVC modified materials, such as PP/PE+ wood powder, PVC+CaCO3,etc.
Machine consists of PVC WPC pelletizing line:
Double screw extruder→Die head→Vibration screen→three-stage air conveying system.
2.4.Two steps pelletizer production line
*The capacity can be 200-800kg/h according requirement
*This machine is used to pelletizing recycled material*Screen exchanger will make sure the extruded granule is purity;*The raw material can be PE/PP/PS/ABS scrap
Machine consists of:Two sets of single screw extruder→Die and Mould→Cooling Sink→Pelletizer→Fetch water device→Hydraulic pressure station→Pressure sensor→Automatic control system→Spiral feeding machine.
3. Our service *We can provide customers with perfect installation and use services. *We can provide customers with satisfactory products according to their needs. *When problems arise during the use of products, we can provide appropriate solutions. *The warranty period is one year, except man-damage. *Welcome to visit our factory and looking forward to win-win cooperation.
