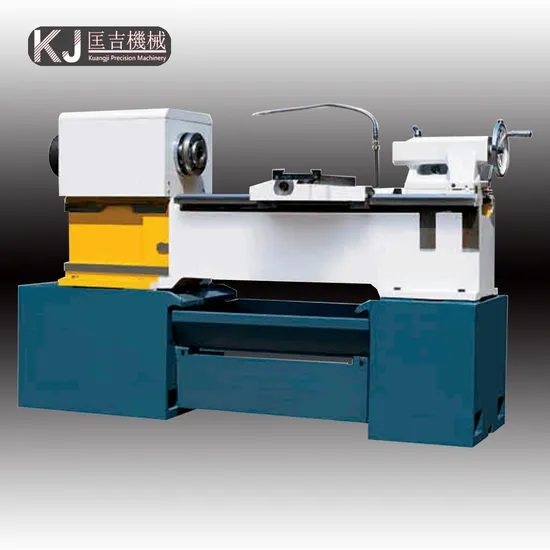

Saddle Horizontal Centre Lathe Cn6240b-3000 High Precision Universal Lathe for Metal Manual Lathe Machine

Product Description

1, ordinary (saddle) lathe a spindle through the hole diameter of 48mm:
C6132(40)A: The rail span is 290mm; Processing diameter of 350~ 400; Center distance 500-1000mm;
C6132(40)D: The rail span is 320mm; Processing diameter of 350~ 400; Center distance 500-1500mm.
2, large aperture ordinary (saddle) lathe:
(1)CN6140B: the guide rail span is 390mm; The spindle bore diameter of 82, the processing diameter of 420, the center distance of 1000-3000mm;
(2)CN6150B: the guide rail span is 390mm; The spindle bore diameter of 82, the processing diameter of 500, the center distance of 1000-3000mm;
(3)CN6180B: the guide rail span is 510mm; The diameter of the main shaft is 82, the processing diameter is 800, the center distance is 2000-3500mm;
(4)CW6195F: the rail span is 550mm; The diameter of the main shaft is 105, the processing diameter is 950, the center distance is 2000-5000mm;
(5)CWQ61110F: the rail span is 550mm; The diameter of the main shaft is 105, the processing diameter is 1100, the center distance is 2000-5000mm;
(6)CWQ61125F: the rail span is 550mm; The diameter of the main shaft is 105, the processing diameter is 1250, and the center distance is 2000-5000mm.
3. CJK, CNC series (flat bed, inclined bed) CNC lathes and CNC light machines:
Processing diameter of 350~ 1250, processing length 750~3000mm.

Technical parameter	Machine tool type		CN6140B	CN6240B	CN6150B	CN6250B
Maximum turning diameter on the bed			420 mm		500 mm
Height of center			210 mm		250 mm
Maximum workpiece length			1000 mm,1500 mm,2000 mm,3000 mm
Width of bed rail			390 mm
Maximum workpiece turning diameter on the tool holder			220 mm		300 mm
Maximum rotating diameter of workpiece in saddle groove			630 mm		710 mm
Platter front saddle effective length			240 mm		240 mm
Through-hole diameter			Ф 82
Taper hole			φ 90/1:2
Spindle speed			9~1600 r/min (24 levels for each side)
Maximum transverse travel of the tool holder			320 mm		360 mm
Small knife holder maximum stroke			145 mm
Distance from spindle center line to tool support surface			About 28 mm
Tool bar section size (H x W)			25 mm x 25 mm
Longitudinal feed			0.028~6.43 mm/r (93)
Lateral feed			0.028~6.43 mm/r (93)
Taper of the inner hole of the center sleeve			MT5
Maximum movement of the center sleeve			150 mm
Maximum lateral movement			±15 mm
Metric system			0.5~224 (48)
British system			72~1/8t/in (48)
module			0.5~112 (42)
Diametral pitch			56~1/4DP (45)
Main motor			7.5 kW 1500 r/min
Main drive triangle belt model specification			B-2260 mm		B-2260 mm
Overall dimensions(Length x width x height)	centre distance	1000 mm	2625mmx1043mmx1275mm		2625mmx1077mmx1315mm
		1500 mm	3125mmx1043mmx1275mm		3125mmx1077mmx1315mm
		2000 mm	3625mmx1043mmx1275mm		3625mmx1077mmx1315mm
		3000 mm	4800mmx1043mmx1275mm		4800mmx1077mmx1315mm
		3500 mm
Net machine weight
