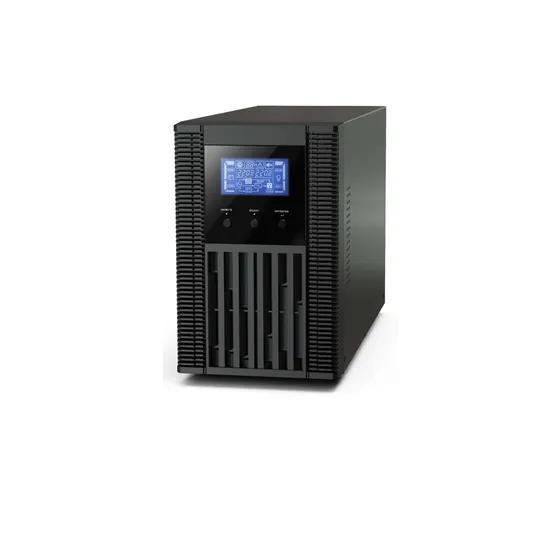

Online UPS 1kVA 3kVA Double Conversion for Medical Equipment Data Machine Using UPS

Product Description

Product Introduction
Characteristics :
1. True online double conversion high frequency UPS. 2. Advanced and reliable microprocessor control technology. 3. Wide input voltage range (110~300V). 4. Active input power factor control (PFC) with input power fa ctor above 0.99. 5. LCD display interface for clearer and more intuitive visual ization. 6. Compatible with generators.
Specifications

Model	DPH1K	DPH2K	DPH3K	DPH6K	DPH10K
Capacity	1KVA/800W	2KVA/1.6KW	3KVA/2.4KW	6KVA/4.8KW	10KVA/8KW
Input voltage range	120-300Vac	120-300Vac	120-300Vac	110-300Vac	110-300Vac
Output	220Vac	220Vac	220Vac	220Vac	220Vac
Output power factor	0.8	0.8	0.8	0.8	0.8
Waveform	Pure sine wave	Pure sine wave	Pure sine wave	Pure sine wave	Pure sine wave
Battery number	2	4	6	16/20 optional	16/20 optional
Rated voltage	24V	48V	72V	192/240 optional	192/240 optional
Dimension	282*145*220mm	397*145*220mm	421*190*318mm	369*190*688mm	442*190*688mm
Weight	9.8KG	17KG	27.6KG	61KG	66KG

Daopulse DPH Series UPS Power Daopulse DPH series is a new generation of universal UPS, which is designed and manufactured with the latest scientific research and application experience. The use of state-of-the-art DSP digital control technology effectively improves product performance and system reliability, achieving high power density integration and miniaturization. Daopulse 1KVA~3KVA UPS is a high-end online energy-saving low power UPS, specially designed for small/medium-sized enterprises and small power supply needs in domestic and foreign markets. With rich extended functions, users can configure flexibly according to the full range of personalized needs. It can provide highly reliable green power protection for the departmental servers, small LANs, workstations, industrial PCs, small medical devices, and other small precision electronic instruments.

ABOUT DAOPULSE
Guangzhou Daopulse Energy Co., Ltd. is a China national high-tech enterprise that designs, manufactures, markets and supports high performance, cost effective uninterruptible power systems (UPS) and power conversion products, including UPS power supply, lead acid battery,solar inverter, solar charger and solar light. All the products are produced above industry and international standards. The qualified and experienced technical support team will be at your service all the time around the year. Driven by a desire to exceed your expectations, we promise to focus our efforts providing each and every one of our customers with comprehensive power solutions, responsive and personalized support and competitive pricing to meet 100% of your requirements.
Certifications
