Conveyor Belt Table 1 Color Screen Printing Machine for Bags

Product Description

Product Description Application: This machine is specially used for printing bags(Paper bag, plastic bag, non woven bags)
Feature:
1) PLC+touch screen control
2) The conveyor belt stroke can be set at will
3) The conveyor belt is Electric controlled 3) Airframe adopts coin alloy,and metal coating surface
4) Distyle vertical constructure, high precision, steady operation
5) The transeversa stroke can be adjusted, spacing by Taiwan electronic switch
6) The angle of scraper and ink covering blades can be adjusted randomly
7) Installing scraper constant pressure equipment to make sure pressure is steady when printing
8) You can regulate work-table back and forth or right and left, and then fastening it
9) You can regulate screen frame back and forth, right and left or level orientatio
10) Installing CEC oil buffer on up and down, left and righ to avoid printing shock
11) The machine is running fastly, steably and lower noise.
12) Action model option: fully automatic | semi-automatic | manual
13) Start-up method: Panel | Foot pedal

Technical parameter:
1) Maxium printing area		350*450mm
2) Printing speed		1000-1200pcs/hr
3) Power		220V
4) Air pressure		5-7bar
5) Machine size		2500*700*1550mm

Detailed Photos

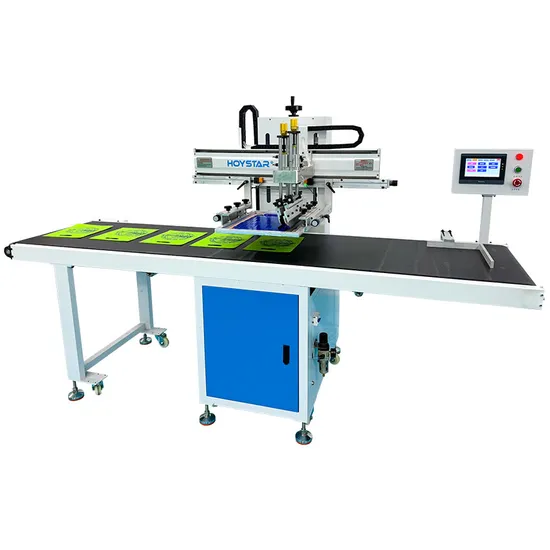

Vacuum suction worktable or flat surface can be selected Conveyor belt type,suitable for factory assembly line operation PLC+touch screen panel control,easy to use Suitable for print non woven bag,paper cup,plastic bag and other flat surface product
