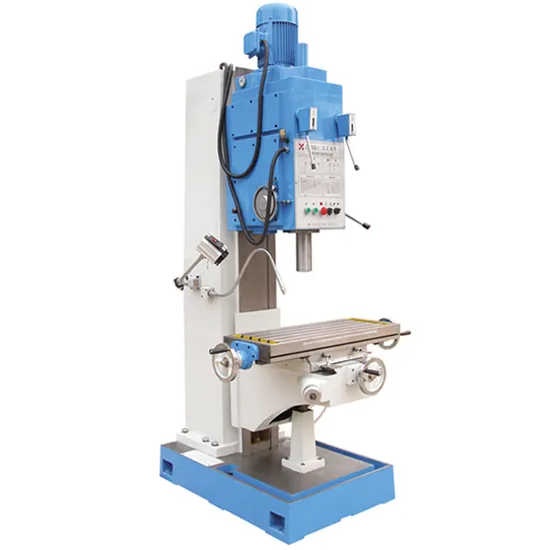

Z5140b-1 Column Vertical Drilling Machine
Basic Info.
Model NO.
Z5140B-1
Controlling Mode
Artificial
Number of Shaft
4
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Drilling Diameter
40/50mm
Spindle Taper
Mt4/Mt5
Stroke of Spindle Quill
250mm
Spindle Speed Steps
12steps
Spindle Speed Range
31.5-1400 r.p.m
Spindle Feed Range
9
Vertical Travel
300mm
Main Motor Power
3kw
Overall Size
1090X905X2465mm
Net Weight
1250kg
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84592900
Production Capacity
10sets/Month
Product Description
Z5140B-1 column vertical Drilling Machine for saleMain feature of drilling machine
1. Z5140B and Z5140B-1 vertical drilling machine are universal drilling machine.the max drilling diameter is 40mm.
2.Z5150B and Z5150B-1 vertical drilling machine are universal drilling machine.the max drilling diameter is 50mm.
3. The table of Z5140B, Z5150B is fixed and The Z5140B-1, Z5150B-1 is cross table.
4. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
5. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.
Standard accessories
Coolant system,tapping unit,halogen work lamp,operating tools,operator manual
Three-jaw drill chuck |
Drill joint-bar |
Drill joint-bar |
Short reduction sleeve with Morse's taper |
Retreat sets of wedge |
Handle |
Specification | Unit | Z40 | Z40-1 | Z50 | Z50-1 |
| Max drilling diameter | mm | 40 | 50 | ||
| Spindle taper | MT4 | MT5 | |||
| Stroke of spindle quill | mm | 250 | |||
| Spindle box travel (manual) | mm | 200 | |||
| Spindle speed steps | 12 | ||||
| Spindle speed range | r.p.m | 31.5-1400 | |||
| Spindle feed steps | 9 | ||||
| spindle feed range | mm/r | 0.056-1.80 | |||
| Table size | mm | 560 x 480 | 800 x 320 | 560 x 480 | 800 x 320 |
| Longitudinal/cross travel | mm | - | 450/300 | - | 450/300 |
| Vertical travel | mm | 300 | |||
| Max distance between spindle and table surface | mm | 750 | 550 | 750 | 550 |
| Main motor power | kw | 3 | |||
| Overall size | mm | 1090x905x2465 | 1300x1200x2465 | 1090x905x2465 | 1300x1200x2465 |
| Net weight | kg | 1250 | 1350 | 1250 | 1350 |
