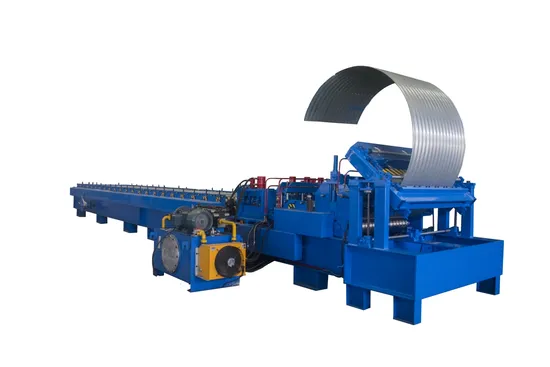

1.2mm Thickness Galvanized Steel Storage Grain Silo Corrugated Panel Roll Forming Machine

Product Description

Steel Grain Silo Corrugated Roll Forming Machine corrugated Profile Roll Forming Machine
Technical Parameters

(1)6Tons*1250mm Twin coil Hydraulic un-coiler (with coil car)
Description	There are different choices, please turn to the catalogue of un-coiler
(2)Automatic feeding device(to design with automatic feeder). Electric pre-shearing device for flat sheet.
Function	1.Automatic feeding,motor drive the coil turning.Pressing coil device for assist the coil feed in. 2.Smart cut control, to cut off the end of the final piece of sheet only
Shearing Thickness	Up to Max. 1.2mm
(3)The general machine parameter
Suitable roll forming material	Aluminum,PPGI,GL
Thickness	0.8mm-1.2mm
Feeding width	1200mm
Frame design	Wall-plate-frame-design /New-stand-frame-design
Roll stages	16 stages
Material of forming roller	45Cr, CNC lathes, Nitriding
Shafts Diameter	Φ95mm,precision machined
Main motor power	30KW with reducer
Max. Line speed of roll former	6-8m/min (Higher speed is available, depends on the specification required by the buyer)
Material of cutting blade	Cr12mov, hear treatment
Electric Standard	415V /50Hz/3PH or as per customer's requirements
Major Color of Machine Painted	RAL 5015 (Blue) or as per customer's requirements
(4) PLC Control system
PLC	Siemens brand (ABB brand is available if required)
Touch Screen	Siemens brand (ABB brand is available if required)
Encoder	Omron brand
(5)Product Rack
Un-powered, 4 meters long (2meter*2)
(6)Option: CE certificate
(7)Service after sell
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements. Installation: (1) If installation is needed, Liming (the seller) will dispatch technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation. (2) If installation is needed, the buyer shall make the following preparation before arrival of technicians. a) Position the machine in the buyer's factory. b) Prepare necessary electric wiring. c) Prepare material of trial running. d) Provide labors for assistance and installation during installation. e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller's technician will go smoothly.
(8)About us
Please visit the web site: liming2018.en.made-in-china.com for detailed information

FAQ
1. Are you a factory?
Yes, we are a factory. Xiamen Zheng Liming Metallurgical Machinery Co., Ltd, founded in 1989, has been in business for more than 30 years and covers an area of more than 100,000 square meters. It is the first manufacturer specializing in the manufacturing industry of various cold rolling mills/ roll forming lines in China.
2. How about the strength of your factory?
Our factory was founded in Xiamen in 1989, covering an area of more than 100,000 square meters. We are a national high-tech enterprise, a national standard maker, a municipal-level enterprise technology center, with 18 invention patents, 77 utility model patents and 1 appearance patent.
3. Do you have after-sales support?
We will provide technical support for the whole life cycle of the machine. And we also have skilled technicians available across the world. If you need, we can send our technicians to train your staff.
4. How do you guarantee that you can make the machine as order?
We have industry-leading technicians, professional teams. We focus on the combination of production, R&D, and studying. We also cooperate with universities and specialize in difficult and feasible solutions for the industry. We have nearly 100 R&D people and production staff to produce light structured and reasonably designed machines in time to ensure our customers' needs.
5. How does your factory do regarding quality control?
Quality is priority. First of all, we have in-house laboratory and scientific quality control department. Secondly, we have 146 sets of professional production high-end equipment, multiple process quality inspection to ensure product quality. Most importantly, Zheng Liming always attach great importance to quality control from the very beginning to the end of the production. Every roll forming machine will be fully assembled and carefully tested before it's packed for shipment.
6.Do you sell only standard machines?
A: No, most of our roll forming machines are built according to customers specifications, using top brand components.
7. How can I visit your factory?
Our address is 187#, No. 2 Zhen Nan Road, Tong'an District, Xiamen, China. We sincerely welcome you to visit our factory!

After-Sale Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Terms Of Trade
Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.
Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.
