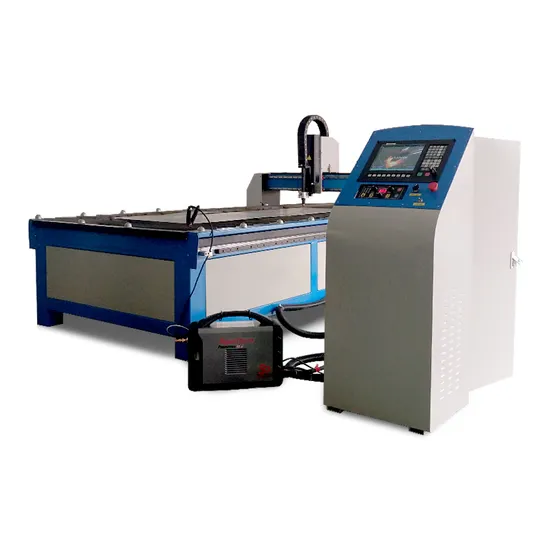

Cheap Desktop CNC Plasma Cutting Machine with Professional Programming Software

Product Description

Cheap Desktop CNC Plasma Cutting Machine With Professional Programming Software Integrating CNC technology, mechanical running and thermal cutting technology, desktop CNC cutting machine is an effective, precise and reliable cutting equipment, excellent man-machine interface makes operation easy and complicated cutting of different shapes cutting possible. it is specially suitable for automatic cutting of non-ferrous metal plate, stainless steel plate and carbon steel plate. Besides, it is wholly modular-designed which is characterized of easy installation and convenient moving.
Product Features
1. Using highly-precise linear guides, double-sided synchronized drive, The machine works noiselessly with high speed and high precision.
2. Human-computer interface design makes the machine easy to learn and operate, and have complete functions.
3. Have 7 inch color LCD display and operate panel, and read program and software upgrade by USB flash disk.
4. Have the function of wireless of automatically memorizing and restoring when power is off.
5. According to the structure of the machine, we can supply work piece collect drawer cutting table, or smoke and dust collector with work piece collect drawer cutting table.
6. System can detect location and enjoys high precision, wide speed range and short acceleration time.
7. Can effectively avoid high frequency interference, and make cutting stable and safe.
8. Optional plasma power sources for different materials cutting.
Product Application
Advertising industry: Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials. Mold Industry: Engraving metal molds made of copper, aluminum, iron and so on. Metal industry: For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.
Product parameters

Model	JGT1-3013	HNM1-1530	HNM1-2040
Lateral distance	1700mm	1900mm	2400mm
Cutting width	1300mm	1500mm	2000mm
Longitudinal gauge	3300mm	3000mm	4500mm
Cutting length	3000mm	3000mm	3000mm
Maximum number of torches	2	2	2
Cutting thickness(mm)	Flame 6-80mm, plasma 0.5-40mm
CNC system	Shanghai Jiaotong University / American Hypertherm
Drive mode	Bilateral step/bilateral servo drive(Panasonic or other brand for your choice)
Working power	AC input 220v, 500-1000w
Cutting gas	Oxygen, Ethylene (propane, gas, natural gas or coke oven gas)
Plasma power	Domestic power supply / United States Haibao / United States Fei Matt / Germany Kiel Bay
Cutting speed	10-10000mm/min
Remark: The horizontal and vertical guide rails can not be lengthened, and can be made into flame/plasma dual-use. Optional automatic height adjustment (arc voltage/capacitance)

Cutting samples
Plasma main parts:
