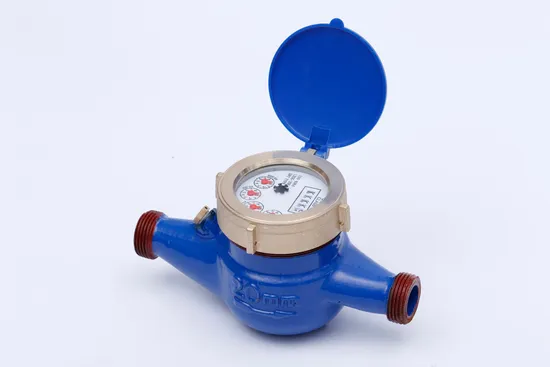

Cast Iron Multi Jet Dry Type Cold Water Meter 20mm
| US$7.50-8.50 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
LXSG-20E
Install
Horizontal
Medium Temperature
Cold Water
Level Measurement
B
Counter Instructions
Digital
Nominal Diameter
15-50mm
Application
Civil
Principle
Speed of Water Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Stucture
Traditional
Type
Mechanical
Standard
ISO 4064 Class B
Material
Cast Iron Body and Brass Cover
Color
Blue
Accessory
Brass Couplings
Transport Package
Inner Box + Carton
Specification
20mm
Trademark
Yongzhou
Origin
Ningbo
HS Code
9028201000
Production Capacity
50000PCS/Month
Product Description
Product features:
Multi-jet ,Rotary vane wheel type
Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
Material: Iron
Measuring accuracy conform to ISO4064 Class B standard
Inlet strainer or non-return valve on request
Sealed dry dial register ensures clear reading
Magnetic driver, external adjustment meter body or internal adjustment body for option
Installation requirements:
Meter should be installed in horizontal position with the register face upwards
Pipe line must be flushed before installation
The meter should be constantly full of water during operation
Main Technical data
| Meter Size DN (mm) | Class | Qs Overload Flow | Qp Nominal Flow | Qt Transitional Flow | Qmin Min Flow | Starting Flow | Min Reading | Max Reading | |||
| m³/h | L/h | m³ | |||||||||
| 15 | B | 3 | 1.5 | 120 | 30 | 14 | 0.0001 | 99999 | |||
| 20 | B | 5 | 2.5 | 200 | 50 | 16 | 0.0001 | 99999 | |||
| 25 | B | 7 | 3.5 | 280 | 70 | 19 | 0.0001 | 99999 | |||
| 32 | B | 12 | 6.0 | 480 | 120 | 25 | 0.0001 | 99999 | |||
| 40 | B | 20 | 10 | 800 | 200 | 56 | 0.0001 | 99999 | |||
| 50 | B | 30 | 15 | 3000 | 450 | 70 | 0.0001 | 99999 | |||
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%
Working Condition:
Water temperature:0ºC≤t≤50ºC (For cold water meter)
Water pressure: ≤10bar (16bar on request)
Competitive Advantage:
Reasonable price with good quality
Long time guarantee
100% tested
On time delivery
