Product Description

Product Description
Introduction to Ring Die Biomass Pellet Machine
The Ring Die Biomass Pellet Machine is mainly used to produce biomass pellet fuel, which is environmentally friendly and renewable and is widely used in industrial and civil fields. It mainly works with crushers, dryers, coolers, packaging machines, etc.
The workflow is as follows:
1. Raw material pretreatment (crushing, drying). Use a crusher to crush biomass raw materials (such as pine, poplar, fir, branches, bark, shavings, corn stalks, wheat straw, alfalfa, straw, rice husks, coconut shells, palm shells, betel nut shells, peanut shells, bamboo, building templates, furniture scraps, wooden pallets, urban garbage, etc.) to 8-12 mm. After crushing, use a dryer to dry the raw materials to a moisture content of 20-50%.
2. Production stage. The dried biomass powder is fed into the biomass pellet machine for granulation production.
3. Cooling stage. Through the cooler, the temperature of the generated biomass pellets is reduced from 70-80ºC to 20ºC to prevent cracking due to excessive temperature.
4. Packaging stage. Automatic packaging and sealing machines are used to weigh and package the products for easy storage, transportation and sales.
Ring die biomass pellet machine has high output, high pressure, high speed and wide applicability.
It is mainly used to convert agricultural and forestry wastes such as wood chips, straw, rice husks, bark, corn cobs, peanut shells, waste furniture, bamboo, waste logs, packaging boxes, etc. into high-density pellet fuel.
The working principle of the ring die biomass pellet machine is to gradually form cylindrical pellets under the extrusion and friction of the high-speed rotating ring die and pressure roller.


Product Parameters

MODEL (The eighth generation vertical ring die machine)	Power (kw)	Capacity (kg/h)	A complete set include five parts machines
450	55	800-1000	1.wood pellet mill 2.cyclone system to remove dust 3.Four meter screw conveyor for feeding 4.electric control cabinet 5.automatic lubrication system
470	75	1000-1200
560	90	1200-1500
560	110	1500-1800
580	132	1800-2000
700	160	3000-3200
850	250	3600-4000

Buying a stand-alone machine includes the following accessories:1.cyclone system to remove dust;2.electric control cabinet ;3.screw conveyor for feeding ;4.automatic lubrication system
Detailed Photos

Customized combination
As a biomass equipment manufacture company, Henan Morethan Machinery always works on the biomass fuel solution, after our longly research, we have worked out a whole pellet production line, and we can provide our custom one-stop service of pellet plant. These design of the biomass pellet production line is simplified, can be increased or decreased according to the size of the factory building, the size and humidity of raw materials and the output. This design has adaptability and flexibility to meet the needs of biomass pellet manufacturers and individuals of different scale.
If you have any questions, please feel free to contact us and we can answer you in detail. At the same time, we can provide exclusive customized services based on your different needs.

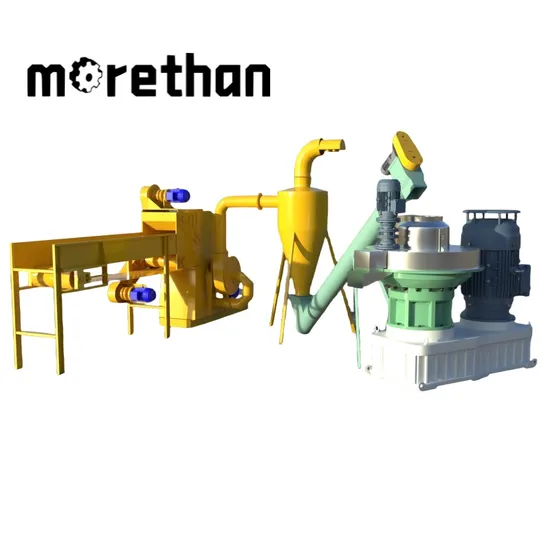

1000kg/h biomass flat mold production line
2000-3000kg/h biomass flat mold production line
Features of biomass Pellet Machine
The characteristics of the straw fuel after forming the pellet fuel, the ratio is large, the volume is small, the combustion resistance is easy to store and transport. The volume after molding is 1/30~40 of the volume of the raw material, the proportion is 10~15 times of the raw material (density: 0.8-1.4), the calorific value can reach 3400~6000 kcal, and it is a solid fuel of highly volatile phenol.1. biomass pellet machine can produce a variety of wood chips, straw, husk and other raw materials based biomass particles;2.The use of cold pressing molding, extrusion molding and other molding technology, grease polishing polishing process makes biomass particles beautiful appearance, more compact structure;
3. biomass pellet machine high output, low energy consumption, low noise, low failure, machine fatigue resistance, continuous production, economic and durable;4.The whole machine is made of special high-quality materials and advanced shaft transmission device, and the key components are made of high-quality alloy steel and wear-resistant materials;
5.The biomass pellet machine mold is placed flat, the mouth is upward, and it is directly into the granulation mold from top to bottom;6.The proportion of wood chips is very light, straight up and down, the sawdust into the press wheel rotation to the four sides, uniform compression particles;
7.biomass pellet machine is upward open, easy to heat, in addition to a set of air-cooled cloth bag dust, automatic refueling;
8.biomass pellet machine is a hard enlarged shaft, large cast steel bearing seat, its large bearing does not bear any pressure, not easy to break, long life.
Factory Display
Packaging & Shipping
Certifications
Pre-sales service1.Tailor-made efficient technical solutions for you.2.Tell us your needs, we will recommend the machine to you, professionally introduce the machine3.Service consultation in 365 days a year.4.24 hours to respond to messages in a timely manner service During the project1.Standardized precision production of production orders in 8 major departments.2. The operation of the machine will be tested before delivery, video will be given to the customer, and the machine will bechecked and accepted3.The entire production process is visualized, which is convenient to check the production progress at any time.4.The idling machine test is combined with the feeder test - strict quality inspection.After-sale service1. Accepting service consultation in 365 days a year.2. Our after-sales engineer can come at any time for maintenance.3. We will return customers on a regular basis, to ensure proper operation of the production line.4. We provide accessories for all equipment.
FAQ
1. Could I have prices of your products ?Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.2. Can we customize our logo/website/company name on products?Yes, we offer OEM and ODM service.3. Can I get a discount?Yes, the more quantity, the better the price. Please contact us to get the best price.4. Do you inspect the finished products?Yes, each step of production and finished products will be came out inspection by QC department before shipping.5. Where are you? Can we go to China and visit your factory?Yes, of course. We are in Henan, China. Welcome to our factory.
