High temperature accuracy and stability portable intelligent dry well furnace for thermal resistance,Pt100 thermocouple

Product Details

Product Description

Product Description
Product Description

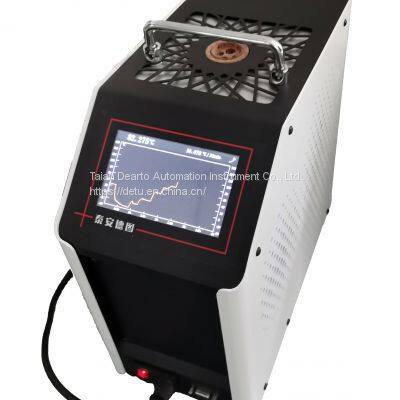

DTG series portable intelligent dry block temperature calibrator, simple operation, light and easy to carry, accurate temperature control,suitable for laboratory and industrial field temperature calibration / metering; its calibration temperature range can be from 50° C to 1200 ° C, the temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. Technologies such as temperature control accuracy, horizontal temperature field, vertical temperature field,stability, load capacity and hysteresis are all at the leading level in China. Widely used in machinery, shipbuilding, chemicals,food, electricity, pharmaceuticals and other industries.
Functional characteristics
Operation interface
Product Paramenters

Medium temperature portable intelligent dry block furnace
Model	DTG-300G	DTG-450G	DTG-660G
Temperature range	50℃~300℃	50℃~450℃	50℃~660℃
Accuracy of sensor	± 0.4%·t;Support deviation correction
Control style	Touch screen
Display resolution	0.01℃
Radial uniformity	≤±0.2℃
Axial uniformity	Within 30mm from the bottom of the well ≤0.5℃(50℃~300℃)
	Within 30mm from the bottom of the well ≤1.0℃(300℃~660℃)
Temperature fluctuation	≤±0.15℃
Well depth (mm)	160
Standard hole diameter(mm)	φ4.5,φ6.5,φ8,φ10 When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization)
Dimensions (mm)	285(L) x170(W) x335(H)
P	800W		1200W
Power supply	AC 110V/220V,60Hz/50Hz

High temperature portable intelligent dry block furnace
Model	DTG-800G	DTG-1000G	DTG-1200G
Temperature range	300℃~800℃	300℃~1000℃	300℃~1200℃
Control style	Touch screen
Accuracy of sensor	± 0.4%·t;Support deviation correction
Display resolution	0.01℃
Radial uniformity	≤±0.2℃
Axial uniformity	Within 30mm from the bottom of the well ≤1.0℃
Temperature fluctuation	≤±0.2℃
Standard hole diameter(mm)	φ6.5,φ12 When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization)
Well depth (mm)	200
Dimensions(mm)	310×165×360
P	1800W
Power supply	AC 110V/220V,60Hz/50Hz
