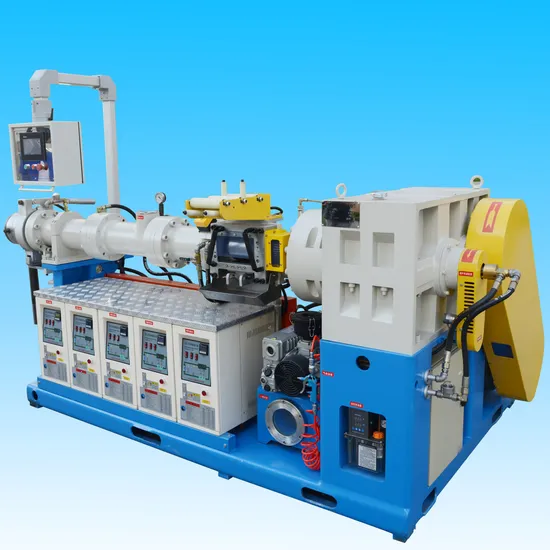

Hydraulic Hose Extruder// High Pressure Hydraulic Pipe Extrusion Machine 90mm
| US$60,000.00-73,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
90
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Type
Rubber Extruder
Model Number
Bne90-01-00
Screw Diameter
90mm
Color
Based on Customer Demand
Dimension(L*W*H)
3200*1200*1620mm
Weight
3500kgs
Power
75kw
L/D
20:1
Vacuum System
Yes
Screw Speed
2-55
Gear Reducer
18.5:1
Capacity
320kg/Hour
Place of Origin
Zhejiang, China (Mainland)
Transport Package
Wooden Pallet
Specification
90mm
Trademark
BAINA
Origin
Zhejiang
HS Code
8477209000
Production Capacity
10 Set/Sets Per Month
Product Description
we are specilize in rubber extrusion machine and vulcanization machine for rubber sealing profile , rubber hose, silicon rubber profile, butyle rubber tape and sheet product, insulation rubber sheet and pipe products More information please contact us freely.Salis zhou
Various types of basic parameters:
| Item | Diameter of screw(mm) | L/D ratio | speed of screw(r/min) | Driving power(kw) | Max output of production (kg/h) | Weight(kg) |
| 150mm 20D (vacuum) | 150 | 20:1 | 0-45 | 160 | 1000 | 6500 |
| 150mm 16D | 150 | 16:1 | 0-45 | 132 | 800 | 6500 |
| 120mm 20D (vacuum) | 120 | 20:1 | 0-50 | 110 | 700 | 5200 |
| 120mm 16D | 120 | 16:1 | 0-50 | 110 | 600 | 5200 |
| 90mm 20D (vacuum) | 90 | 20:1 | 0-55 | 55 | 320 | 3200 |
| 90mm 16D | 90 | 16:1 | 0-55 | 55 | 280 | 3200 |
| 75mm 20D (vacuum) | 75 | 20:1 | 0-55 | 37 | 160 | 1200 |
| 75mm 16D | 75 | 16:1 | 0-55 | 37 | 140 | 1200 |
| 50mm 12D | 50 | 12:1 | 2-70 | 7.5 | 50 | 600 |
