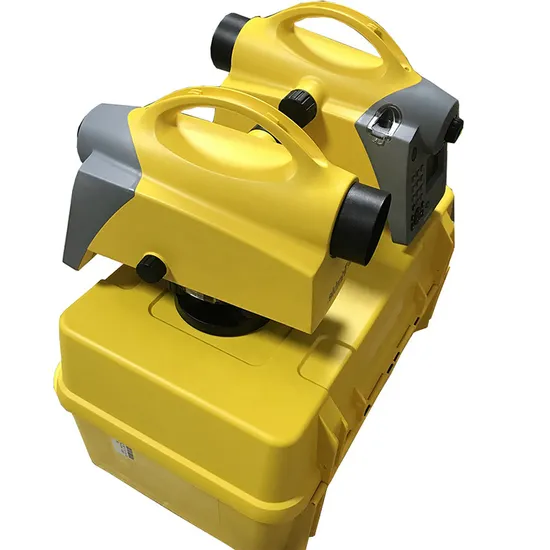

Dini 03 Bubble Automatic Level Price Digital Leveling Measuring Instruments
Basic Info.
Model NO.
DINI 03
Vertical Lines
3, 0
Type
Magnetic
Min. Focusing Distance
1m
1km Double Run Leveling
2.5m
Colour
Yellow
Transport Package
Individual Package
Specification
215*130*135mm
Trademark
No
Origin
Jiangxi
HS Code
9015800090
Production Capacity
10, 000PCS/Year
Packaging & Delivery
Package Size
55.00cm * 45.00cm * 35.00cm
Package Gross Weight
10.000kg
Product Description
| TRIMBLE DINI03 DIGITAL LEVEL | ||
| PERFORMANCE | ||
| Accuracy DIN 18723, standard deviation height measuring per 1 km (3280.84 ft) of double leveling | ||
| Trimble DiNi 0.3 mm per km | ||
| Electronic measurement | Invar precision bar code staff | 0.3 mm (0.001 ft) |
| Standard bar code staff | 1.0 mm (0.004 ft) | |
| Visual measurement | 1.5 mm (0.005 ft) | |
| Distance measurement with a 20 m (65.62 ft) sighting distance | Invar precision bar code staff | 20 mm (0.066 ft) |
| Standard bar code staff | 25 mm (0.082 ft) | |
| Visual measurements | 0.2 m (0.656 ft) | |
| Trimble DiNi 0.7 mm per km | ||
| Electronic measurement | Invar precision bar code staff | 0.7 mm (0.066 ft) |
| Standard bar code staff | 1.3 mm (0.082 ft) | |
| Visual measurements | 2.0 m (0.656 ft) | |
| Distance measurement with a 20 m (65.62 ft) sighting distance | Invar precision bar code staff | 25 mm (0.066 ft) |
| Standard bar code staff | 30 mm (0.082 ft) | |
| Visual measurements | 0.3 m (0.656 ft) | |
| Range | ||
| Electronic measurement | 1.5 m-100 m (4.92 ft-328.08 ft) | |
| Visual measurement | from 1.3 m (4.265 ft) | |
| Electronic Measurement | ||
| Trimble DiNi 0.3 mm per km | ||
| Electronic measurement | Resolution height measurement | 0.01 mm / 0.0001 ft / 0.0001 in |
| Resolution distance measurement | 1 mm (0.003 ft) | |
| Measurement time. | 3 s | |
| Trimble DiNi 0.7 mm per km | ||
| Electronic measurement | Resolution height measurement | 0.1 mm / 0.001 ft / 0.001 in |
| Resolution distance measurement | 10 mm (0.033 ft) | |
| Measurement time. | 2 s | |
| Horizontal Circle | ||
| Type of graduation | 400 grads and 360 deg | |
| Graduation interval | 1 grad and 1deg | |
| Estimation to | 0.1 grad and 0.1 deg | |
| Measurement Programs: Trimble DiNi 0.3 mm per km | ||
| Standard programs | Single measurement with and without stationing, stakeout, line leveling with intermediate sight and stakeout, line adjustment | |
| Leveling methods¹ | BF,BFFB, BFBF, BBFF, FBBF aBF, aBFFB, aBFBF, aBBFF, aFBBF | |
| GENERAL SPECIFICATION | ||
| TELESCOPE | Aperture | 40 mm (0.131 ft) |
| Field of view at 100 m. | 2.2 m (7.217 ft) | |
| Electronic measurement field | 0.3 m (0.984 ft) | |
| Magnification | Trimble DiNi 0.3 mm per km | 32 x |
| Trimble DiNi 0.7 mm per km | 26 x | |
| Compensator | ||
| Inclination range | ±15' | |
| Setting accuracy | Trimble DiNi 0.3 mm per km | ±0.2" |
| Trimble DiNi 0.7 mm per km | ±0.5" | |
| Circular level | 8'/2 mm with Illumination | |
| Display | Graphical, 240 x 160 pixels, monochrome with illumination | |
| Keyboard | 19-key alpha-numeric and 4-way arrow key for navigation | |
| Recording | Internal memory | up to 30 000 data lines |
| External memory | USB Flash Drive support | |
| Data transfer | USB Interface for data transfer between DiNi and PC (means two way communication) | |
| Real-time clock and temperature sensor | Trimble DiNi 0.3 mm per km | Recording of time or temperature |
| Trimble DiNi 0.7 mm per km | N.A. | |
| Power supply | Internal battery | Li-Ion, 7.4 V / 2.4 Ah |
| Operating time | 3 days working time without illumination | |
| Weight (including battery) | 3.5 kg (7.72 lb) | |
