Tony Customized Factory Price Safety Pine Ring Die Pellet Machine

Product Description

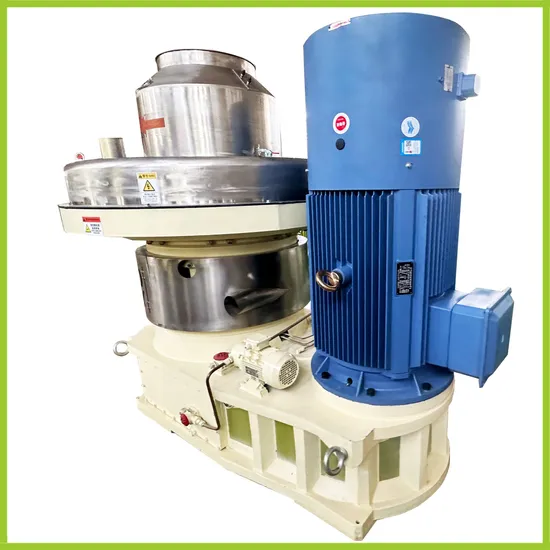

Customized Factory Price Safety Pine Ring Die Pellet Machine
Tony wood biomass wood pellet mill machine is mainly used for medium and big process plant. Wood pellet mill machine is a new generation of energy-saving green power products, researched and developed by our researcher newly. Wood pellet mill machine is mainly used to compress crushed wood, corn straw, plant waste, bamboo powder, grass, straw, rice husk etc. into pellets. Machines adopt bipolar speed adjusting, and have the characteristics of low power consumption, reasonable structure, economic and durable.
It is a newly wood pellet mill machine, researched, designed and produced by ourselves. It's mainly used to produce biomass pellets from the materials kinds of wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material.
Materials and Output Pellets:
Pellets parameter:
calorific value: >3000~3500 kcal/kgdensity: >1.1~1.3t/m³moisture: <=10%combustion ratio: >=98%heat efficiency: >=81%ringelman emittance : <1discharged dust consistence: <=80mg/m³ash content: <=2%
Features of wood sawdust pellet making machine
Self -lubrication system
A.Spindle automatic lubricatin system
B.Roller automatic lubricatin system :it can keep the pellet machine in maintenance for 24hours.
Output of pellet mill machine: Our machine can reach the expected output in our technical parameter.
Working Life of spare parts: Working life of our dies is 3000-4000 hours, much longer than others'.
Number of Our Ring Die holes: Our ring die has 5 rows of holes, much more than others'.
Driving Method of pellet machine: Our machine is drived by gear,not reduction box; Gear driving is helpful to increase the usage life of gear, so the maintenance rata of gear is much lower.
Forged Main Shaft: Our main shaft is forged, not casted. As well known, there is no air bubble in forging process, so it is hard to be broken.
Details and Technical Pareameters

Model	Power(KW)	Capacity(T/H)	Size(MM)	Weight(Ton)
TYJ551-II	90-110	1-2	2364*1550*1705	5.5
TYJ551-III	132	2-2.5	2364*1550*1705	5.5
TYJ760-III	160-180-200	2.5-3.5	2564*1750*2150	9
TYJ860-III	220-250	3-5	2664*1950*2150	13.5

High Quality Spare Parts
Double-layers Ring Die
All kinds of pellet machine only have 1 die(ring die).Material: alloy, stainless steel Life time: 3000-4000hours1.The professional heat treatment processing technology can make its hardness above HRC62.2.Vertical Ring die, feeding vertically.3.Double-lay die, dual use. When one side is damaged, turn over and use the other side.4.The compression ratio can be custom made
Rollers1.Number of rollers:2 pieces2.Die fixed, rollers running, materials centrifugal and evenly distributed around.3.Structure:roller shell and bearing4.Working life of rollers:1500-2000 hours
Spindle1.Our main shaft is forged.2.no air insde the main shaft while being forged3.hard to be broken while high-speed running
Self-lubrication System1.Lubricating rollers to make the pellet press machine continuously run for 24 hours(using lubricating grease).
2.It also has the warning function when high pressure/temperature or low pressure/temperature appear.
Company Information SHANDONG TONY ENVIRONMENTAL PROTECTION SCI-TECH CO.,LTD is an integrated enterprise specializing in developing, manufacturing, customer training and international trade of pelleting equipments for years. The unique industrial chain and geographic location are the leading advantages for Tony to develop and produce biomass pellet equipments. Main products are biomass energy ring die and flat die pellet machine, flat die,ring die feed pellet machine, biomass pelleting making production line, air-flow and drum series drying equipments, crushing and grinding equipments, cooling,screening ,mixing and conveying equipments.

TONY's Exhibition
In France, In Germany, In Spain, In Italy, In Poland, In Iceland, In Russia, In Pakistan, In Chile, In South Korean, In Japan, In Thailand, In Vietnam, In Indonesia, In Singapore, In Malaysia, In Croatia, In Bulgaria, In Serbia and other places that need pellet machinery all over the world, Tony shows its excellence.
Clean Workshop and Warehouse
If you are interested in our straw pellet mill,please send us inquiry freely. Before quotation we need to know:1. What's the capacity you plan to produce?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content of your raw materials?
5. What's the final pellet size do you want?
