Spc Flooring Production Line Extrusion Machine Spc Flooring Making Machine

Product Description

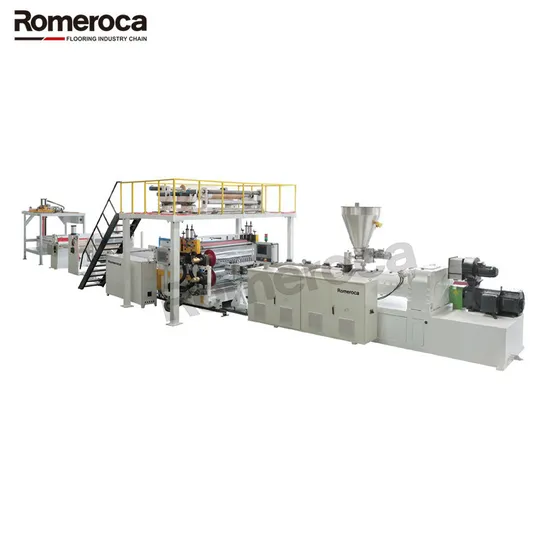

SPC FLOORING PRODUCTION LINE
EXTRUSION MACHINERomeroca Extrusion machine is one of the most important production process for producing SPC flooring. The extruder converts the mixed raw materials into the SPC core layer by the double-cone screw and die, and laminating the wear-resistant layer and decor film on the core layer with emboss roller, and finally form the large board of the SPC floor. Romeroca's extruder machine is Top 3 in the industry. We provide every customer with the best guarantee and service.
Specifications:

Extruder Model	RFS-Z92/188	RFS-Z110/220	RFS-Z92/188& RFS-Z80/156 For coex
Capacity (kg/24h)	14000-18000	25000-28000	17000-20000

Features of Romeroca SPC Flooring Extrusion Line: -- Patent design, over 10 years' extrusion and lamination production experience. -- Energy saving, high efficient and stable. -- Easy replacement of embossing Roller. -- Easy operation and maintenance and QC checking. -- Better plasticization and more peel strength, because of our patent lamination system. -- No waste during change winders. -- Good performance on shrinkage and bending after extrusion. -- Make sure depth of embossing be good even. -- Make special design and offer turn-key project. Technical Details:

Conical Twin Screw Extruder (110/220)
Screw
Type	Conical Twin Screws
Diameter (Front/Back)	110/220mm
Material	38CrMoAlA with Bimetallic Alloy
Treatment	Nitride
Thickness of nitride layer	0.6-0.7mm
Hardness	HV 740 - 940
Roughness	Ra≤0.8um
Rotation speed(r/min)	1~34.7 r/min
Barrel
Barrel material	38CrMoAl with SKD Alloy Sleeve
Treatment	Nitride with Hardness 900-1000HV
Heating zone	Six zones
Heating on Feed inlet (1st zone)	Ceramic heater
Heater (2nd to 6th zone)	Aluminum heater
Heating power(kW)	80KW
Temperature range(ºC)	50~300
Cooling zone	Five zones
Cooling	Air blower with Water circulation
Drive
Motor	AC motor (Siemens Beide/WNM)
Motor Power	200KW
Speed driver	Frequency inverter (TECO/ABB)
Gearbox	Horizontal
Gears material in Gearbox	20CrMoTi Alloy steel
Connection (motor & gearbox)	Motor connected with gearbox in the behind
Vacuum venting
Vacuum pump	Liquid ring vacuum pump
Power	7.5KW
Vacuum degree	0~-0.09Mpa
Dust collection tank	Two pcs
Feeding
Hopper for loading material	SUS304 stainless steel with sight glass
Feeding	By screw rotating
Feeding screws	Double screws
Drive	2.2KW gearmotor
Speed driver	Frequency inverter (ABB brand)
Blender unit	Avoid powder bridging
Control
Control cabinet	Integrated in the extruder
Control cabinet cooling system	Air Blow cooling for power cabinet
Control	All motors and temperature control circuits (total 16 zones) and melt pressure and alarms in extruder
Temperature Control type	Temperature control meters
Manu display in language	English / Chinese
Operation	Touch and button
Overload alarm	Included
General parameter
Extruder Max. capacity	1500kg/h
Production capacity (recommend)	1000-1250kg/h
4 mm product	3000-3500 m²/day
Total installation power	300KW
Weight	11500Kg
Length	8000mm
Width	1800mm
Height (included loader)	4800mm

OVERSEAS PROJECT CASES
FULL WORKING PROCESS OF SPC FLOORING
OUR SERVICES & AFTER SALES1) 12-months warranty on all Romeroca machine (excluding wear parts).
2) 36-months tracking service, prompt response within 24 hours.
3) Providing factory production process and machine layout design.
4) Providing technical guidance, training and support.
5) Providing timely supply support for spare parts.
6) Other support from raw materials, machines to finished products.
