Food Standard Material Conveyor Belt Handing Turning Modular Belt Conveyor

Product Description

Specification for food standard high quality strong modular belt conveyor

Conveyor Length	1-25m, depending on your project design
Conveyor Width	0.3-3m, for smaller width, we recommend use chain conveyor
Conveyor Height	Adjustable. Wheels and brake are available
Frame material	Stainless steel/ Carbon steel with coating/ Aluminum
Belt material	POM/PP plastic modular belt
Other belts	PVC/PU/Mesh belt/ Plastic chain/Stainless chain all available depending on the products that transfer
Motor	Italy brand/SEW/China brand
Voltage	380V(415V)/50HZ(60HZ)
Certificate of equipment	SGS/FDA
Certificate of original	FORM E/F/P/A/L/M
Price terms	FOB/CIF
Business type	Manufacturer

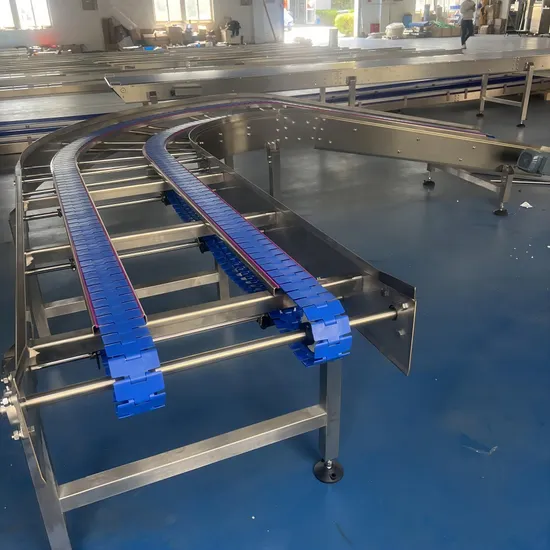

Related pictures of the conveyor system
Modular belt conveyor configuration list:

Belt	7100 Flush grid modular belt, other type modular belt also available. POM material. This kind belt can filter water
Frame structure	Waterproof SS 304 material frame with SS304 bearing( choose this kind frame and bearing when the goods that transfer with water). Stainless steel frame widely uses in food and beverage industry products transfer. Frame bending without any slot at the backside. It can improve the lifetime of the conveyor. Filler strip with stainless steel under the belt to protect the modular belt runs smoothly. And support the belt running under high load capacity with high speed. It also can reduce the friction coefficient between the modular belt and conveyor frame.
Support leg	Use bow shape to make the conveyor more stable. Also can choose tripod stand
Power system	High-quality motor with electrical control cabinet
Automatic control system	Can achieve functions such as lane separation, sorting, screening, classification, etc. according to your need
Conveyor design	We can fabricate according to your drawing. Also, we have a big design team that can make design for your according to your factory layout. We especially good at whole plant transportation design
Delivery time	15 workdays

Shanghai HJ Factory and Office overview
Related products produced by Shanghai HJ Foodnbev Machinery Co.,ltd

Conveyor system	All kinds of the automatic conveyor system
Modular belt	All kinds of modular belt, FT/FG/RIB/ROLLER TOP series
Plastic chain	Plastic top chain, Flexible chain, Stainless steel chain
Industry belt	PVC/PU belt, TPU belt, timing belt
Conveyor roller	Stainless steel roller, PVC roller
Other conveyor spare parts	Guard rails, Wear strips, Foot basis, Bearing, Connection parts

CertificationsThe Conveyor Belts produced by Shanghai HJ Foodnbev Machinery is food standard and can touch with food directly.The test is happened with solid belt raw material. Test Method with reference to FDA 21 CFR 177.2600. Use Distilled water 7.0hrs under Reflux temperature. Result of 001 Total extractives 0.6mg/ inch2. Test with Distilled water Succeeding extraction 2.0hrs under Reflux temperature. Result of 001 Total extractives <0.5mg/inch2. The test were successful. Shanghai HJ Foodnbev Machinery Co.,Ltd Certificated by SGS team.Here is the general comments: Shanghai HJ is a manufacturer & trading company with 76 employees. Mainly produce conveyor system, modular belt, top chains and conveyor spare parts.The factory occupies an area of 2000 square meters. Shanghai HJ Foodnbev Machinery Co.,ltd has successful foreign trading experience in South America, Southeast Asia, South Asia and Africa.Our AdvantagesPre-sales service:
1. We are the manufacturer for both the conveyor system and conveyor spare parts, all the part made out by ourselves, we can control the quality and cost. Provide the customer with high-quality products at competitive prices
2. We provide presales service in various forms, making investment budge, manufacturing, planning so that customers can make a reasonable plan with less cost.
3. We have professional designers and engineer all with bachelor and higher degrees will supply you with professional plan production flow and scientific layout of your plant.
4. Will first check the customer's goods and goods size, then we will recommend a suitable conveyor system with 100% suitable.
and will recommend and offer machines according to customer's use and purchase budget.
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer's needing in advance.
3.Testing the machine and making videos for customer's checking.
After-sale service:
1.We will guarantee the main body of the conveyor system for quality for 2 years.
2.We provide free training and answer customer's questions on technology in time.
Shanghai HJ Foodnbev Machinery forces to produce all kinds of conveyor systems depending on customer needs.
And all types of conveyor spare parts like the modular belt, top chain, the conveyor connection parts.Related products produced by Shanghai HJ Foodnbev Machinery Co.,ltd

Conveyor system	All kinds of automatic conveyor system
Modular belt	All kinds of modular belt, FT/FG/RIB/ROLLER TOP series
Plastic chain	Plastic top chain, Flexible chain, Stainless steel chain
Industry belt	PVC/PU belt, TPU belt, timing belt
Conveyor roller	Stainless steel roller, PVC roller
Other conveyor spare parts	Guard rails, Wear strips, Foot basis, Bearing, Connection parts

Our Exhibition
Packaging & Shipping
